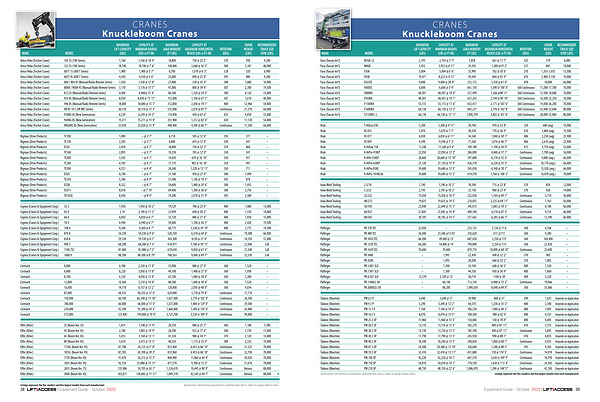

Lift and Access 2025 Equipment Guide | Page 39

CRANES Knuckleboom Cranes

CRANES Knuckleboom Cranes

MAXIMUM
CAPACITY AT
MAXIMUM
CAPACITY AT
CRANE
RECOMMENDED
LIFT CAPACITY
MINIMUM RADIUS
LOAD MOMENT
MAXIMUM HORIZONTAL
ROTATION
WEIGHT
TRUCK SIZE
MAKE
MODEL
( LBS)
( LBS @ FT-IN)
( FT LBS)
REACH( LBS @ FT-IN)
( DEG)
( LBS)
GVW( LBS)
Fassi( Fascan Int ' l)
M10A. 12
2,193
2,193 @ 3 ' 7 "
7,858
661 @ 11 ' 7 "
325
319
6,000
Fassi( Fascan Int ' l)
M40A
5,952
5,952 @ 4 ' 11 "
29,392
1,389 @ 19 ' 2 "
337
881
10,000
Fassi( Fascan Int ' l)
F50A
5,004
5,004 @ 6 ' 6 "
33,995
782 @ 30 ' 0 "
370
1,355-1,655
13,500
Fassi( Fascan Int ' l)
F85B
10,471
8,223 @ 4 ' 11 "
59,349
804 @ 45 ' 9 "
410
2,400-3,150
19,000
Fassi( Fascan Int ' l)
F425SE
9,000
9,000 @ 28 ' 0 "
252,172
3,550 @ 61 ' 0 "
470
10,000
66,000
Fassi( Fascan Int ' l)
F600SE
6,600
6,600 @ 3 ' 4 "
661,150
1,390 @ 100 ' 0 "
360 Continuous
17,200-17,700
70,000
Fassi( Fascan Int ' l)
F800RA
48,501
48,501 @ 10 ' 0 "
521,499
1,366 @ 98 ' 11 "
360 Continuous
13,500-18,800
70,000
Fassi( Fascan Int ' l)
F950RA
48,501
48,501 @ 10 ' 1 "
651,243
2,744 @ 90 ' 10 "
360 Continuous
16,500-22,250
70,000
Fassi( Fascan Int ' l)
F1100RA
55,115
55,115 @ 11 ' 6 "
652,417
2,171 @ 103 ' 6 "
360 Continuous
19,200-26,200
70,000
Fassi( Fascan Int ' l)
F1600RA
66,138
66,138 @ 12 ' 2 "
843,231
2,778 @ 102 ' 8 "
360 Continuous
25,948-32,848
80,000
Fassi( Fascan Int ' l)
F2150RA / L
66,138
66,138 @ 15 ' 11 "
1,090,794
3,802 @ 101 ' 8 "
360 Continuous
28,000-35,800
80,000
Hiab
T-HiDuo 038
5,200
5,200 @ 4 ' 11 "
28,760
970 @ 22 ' 8 "
330
680( avg)
14,000
Hiab
XS 055
5,070
5,070 @ 7 ' 7 "
38,350
770 @ 36 ' 9 "
410
1,860( avg)
19,500
Hiab
XS 077
6,830
6,830 @ 6 ' 11 "
54,560
1,040 @ 38 ' 1 "
406
2,250( avg)
25,900
Hiab
XS 099
9,590
9,590 @ 7 ' 3 "
71,560
1,010 @ 46 ' 7 "
406
2,610( avg)
25,900
Hiab
X-HiDuo 158
11,240
11,240 @ 9 ' 6 "
109,180
1,190 @ 56 ' 9 "
415
3,750( avg)
33,000
Hiab
X-HiPro 418EP
22,050
22,050 @ 12 ' 2 "
286,890
4,060 @ 57 ' 1 "
Continuous
7,790( avg)
56,000
Hiab
X-HiPo 558EP
28,660
28,660 @ 12 ' 10 "
397,880
6,170 @ 52 ' 6 "
Continuous
9,000( avg.)
66,000
Hiab
X-HiPro 658EP
27,120
27,120 @ 15 ' 9 "
426,310
6,220 @ 55 ' 5 "
Continuous
10,770( avg.)
66,000
Hiab
X-HiPro 858E
39,680
39,680 @ 13 ' 5 "
545,050
4,540 @ 78 ' 1 "
Continuous
15,920( avg.)
66,000
Hiab
X-HiPro 1058EJib
39,680
39,680 @ 15 ' 5 "
619,570
1,760 @ 108 ' 3 "
Continuous
16,870( avg.)
78,000
Iowa Mold Tooling
2.5 / 18
1,740
1,740 @ 10 ' 2 "
18,100
715 @ 22 ' 8 "
370
850
12,000
Iowa Mold Tooling
3.2 / 23
2,195
2,195 @ 10 ' 2 "
23,150
960 @ 23 ' 4 "
370
920
14,000
Iowa Mold Tooling
32 / 222
15,058
15,058 @ 14 ' 5 "
222,050
1,764 @ 69 ' 7 "
Continuous
5,710
56,000
Iowa Mold Tooling
40 / 275
19,025
19,025 @ 14 ' 5 "
274,855
2,225 @ 69 ' 11 "
Continuous
7,165
56,000
Iowa Mold Tooling
50 / 345
22,840
22,840 @ 15 ' 1 "
345,015
3,085 @ 70 ' 3 "
Continuous
8,180
66,000
Iowa Mold Tooling
60 / 427
27,845
27,845 @ 14 ' 9 "
409,390
4,210 @ 67 ' 3 "
Continuous
9,735
66,000
Iowa Mold Tooling
80 / 565
38,185
38,185 @ 14 ' 5 "
557,665
6,285 @ 66 ' 7 "
Continuous
12,390
66,000
Palfinger
PK 370 TEC
22,050
–
253,155
2,134 @ 71.6 '
360
6,768
–
Palfinger
PK 480 TEC
36,380
23,586 @ 13.45 '
330,620
617 @ 111 '
360
9,280
–
Palfinger
PK 1050 TEC
66,200
49,400 @ 13 '
687,420
2,250 @ 115 '
360
164,900
–
Palfinger
PK 1350 TEC
66,200
54,800 @ 14 '
790,890
2,250 @ 113 '
360
22,420
–
Palfinger
PK 1650 TEC
70,600
70,600
879,776
10,800 @ 68 ' 10 "
Continuous
25,600
–
Palfinger
PK 3400
–
1,995
22,430
490 @ 32 ' 2 "
370
985
–
Palfinger
PK 4200
–
1,995
28,200
660 @ 32 ' 2 "
370
1,082
–
Palfinger
PK 5.001 SLD
–
7,300
33,190
640 @ 36 ' 5 "
400
1,530
–
Palfinger
PK 7.001 SLD
–
7,300
44,550
930 @ 36 ' 9 "
400
1,660
–
Palfinger
PK 8.501 SLD
12,570
5,100 @ 12 '
58,710
1100 @ 38 '
400
2,320
–
Palfinger
PK 110002-SH
–
66,140
712,350
6,900 @ 72 ' 2 "
Continuous
19,466
–
Palfinger
PK 200002L-SH
–
88,200
1,090,030
8,690 @ 84 ' 0 "
360
33,686
–
Tadano( Manitex)
PM 6.5 P
3,640
3,640 @ 11 '
39,980
860 @ 31 '
390
1,635
Depends on Application
Tadano( Manitex)
PM 9.5 P
5,290
5,290 @ 12 ' 2 "
64,370
1,230 @ 35 ' 5 "
400
2,340
Depends on Application
Tadano( Manitex)
PM 15.5 P
7,160
7,160 @ 14 ' 7 "
106,230
1,480 @ 46 ' 3 "
400
3,905
Depends on Application
Tadano( Manitex)
PM 16.5 S
8,070
8,070 @ 13 ' 5 "
108,500
900 @ 62 ' 4 '
400
4,255
Depends on Application
Tadano( Manitex)
PM 23.5 SP
11,460
11,460 @ 13 ' 5 "
154,060
530 @ 78 ' 9 "
400
4,685
Depends on Application
Tadano( Manitex)
PM 28.5 SP
13,510
13,510 @ 13 ' 5 "
182,270
400 @ 87 ' 11 "
410
5,735
Depends on Application
Tadano( Manitex)
PM 30.5 SP
13,730
13,730 @ 13 ' 5 "
185,740
440 @ 87 ' 11 "
Continuous
5,845
Depends on Application
Tadano( Manitex)
PM 38.5 SP
17,790
17,790 @ 13 ' 5 "
245,920
990 @ 88 ' 1 "
410
6,835
Depends on Application
Tadano( Manitex)
PM 40.5 SP
18,340
18,340 @ 13 ' 5 "
248,820
1,060 @ 88 ' 1 "
Continuous
6,935
Depends on Application
Tadano( Manitex)
PM 47.5 SP
24,380
24,380 @ 12 ' 10 "
320,640
1,340 @ 88 ' 3 "
395
9,205
Depends on Application
Tadano( Manitex)
PM 70.5 SP
32,410
32,410 @ 13 ' 11 "
451,880
730 @ 110 ' 5 "
Continuous
14,010
Depends on Application
Tadano( Manitex)
PM 100 SP
42,220
42,220 @ 14 ' 1 "
607,570
1,630 @ 109 ' 9 "
Continuous
16,790
Depends on Application
Tadano( Manitex)
PM 150 SP
54,010
54,010 @ 14 ' 1 "
778,550
1,650 @ 113 ' 4 "
Continuous
24,585
Depends on Application
Tadano( Manitex)
PM 210 SP
48,150
48,150 @ 22 ' 6 "
1,086,870
1,390 @ 148 ' 11 ''
Continuous
42,100
Depends on Application
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
Listings represent the five smallest and five largest models from each manufacturer.
