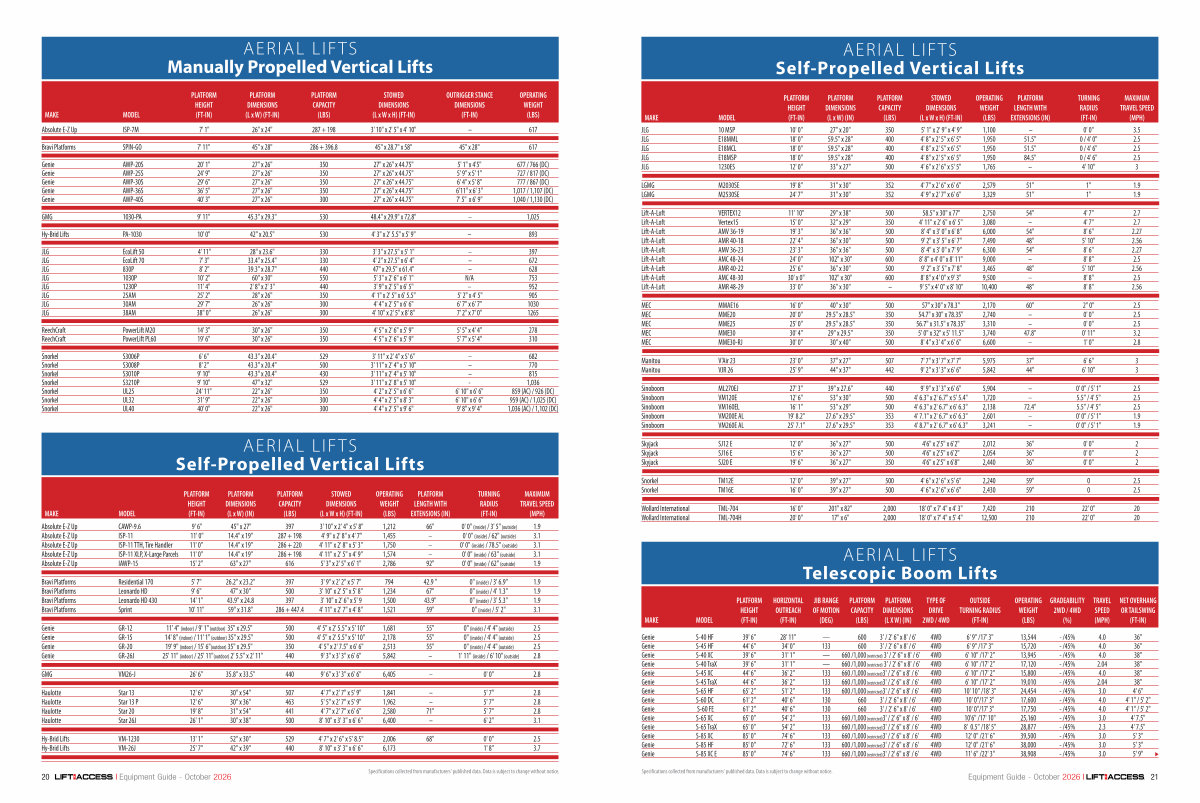

AERIAL LIFTS Self-Propelled Vertical Lifts
AERIAL LIFTS Telescopic Boom Lifts

AERIAL LIFTS Self-Propelled Vertical Lifts

PLATFORM
PLATFORM
PLATFORM
STOWED
OPERATING
PLATFORM
TURNING
MAXIMUM
HEIGHT
DIMENSIONS
CAPACITY
DIMENSIONS
WEIGHT
LENGTH WITH
RADIUS
TRAVEL SPEED
MAKE
MODEL
( FT-IN)
( L x W)( IN)
( LBS)
( L x W x H)( FT-IN)
( LBS)
EXTENSIONS( IN)
( FT-IN)
( MPH)
JLG
10 MSP
10 ' 0 "
27 " x 20 "
350
5 ' 1 " x 2 ' 9 " x 4 ' 9 "
1,100
–
0 ' 0 "
3.5
JLG
E18MML
18 ' 0 "
59.5 " x 28 "
400
4 ' 8 " x 2 ' 5 " x 6 ' 5 "
1,950
51.5 "
0 / 4 ' 0 "
2.5
JLG
E18MCL
18 ' 0 "
59.5 " x 28 "
400
4 ' 8 " x 2 ' 5 " x 6 ' 5 "
1,950
51.5 "
0 / 4 ' 6 "
2.5
JLG
E18MSP
18 ' 0 "
59.5 " x 28 "
400
4 ' 8 " x 2 ' 5 " x 6 ' 5 "
1,950
84.5 "
0 / 4 ' 6 "
2.5
JLG
1230ES
12 ' 0 "
33 " x 27 "
500
4 ' 6 " x 2 ' 6 " x 5 ' 5 "
1,765
–
4 ' 10 "
3
LGMG
M2030SE
19 ' 8 "
31 " x 30 "
352
4 ' 7 " x 2 ' 6 " x 6 ' 6 "
2,579
51 "
1 "
1.9
LGMG
M2530SE
24 ' 7 "
31 " x 30 "
352
4 ' 9 " x 2 ' 7 " x 6 ' 6 "
3,329
51 "
1 "
1.9
Lift-A-Loft
VERTEX12
11 ' 10 "
29 " x 38 "
500
58.5 " x 30 " x 77 "
2,750
54 "
4 ' 7 "
2.7
Lift-A-Loft
Vertex15
15 ' 0 "
32 " x 29 "
350
4 ' 11 " x 2 ' 6 " x 6 ' 5 "
3,080
–
4 ' 7 "
2.7
Lift-A-Loft
AMV 36-19
19 ' 3 "
36 " x 36 "
500
8 ' 4 " x 3 ' 0 " x 6 ' 8 "
6,000
54 "
8 ' 6 "
2.27
Lift-A-Loft
AMR 40-18
22 ' 4 "
36 " x 30 "
500
9 ' 2 " x 3 ' 5 " x 6 ' 7 "
7,490
48 "
5 ' 10 "
2.56
Lift-A-Loft
AMV 36-23
23 ' 3 "
36 " x 36 "
500
8 ' 4 " x 3 ' 0 " x 7 ' 9 "
6,300
54 "
8 ' 6 "
2.27
Lift-A-Loft
AMC 48-24
24 ' 0 "
102 " x 30 "
600
8 ' 8 " x 4 ' 0 " x 8 ' 11 "
9,000
–
8 ' 8 "
2.5
Lift-A-Loft
AMR 40-22
25 ' 6 "
36 " x 30 "
500
9 ' 2 " x 3 ' 5 " x 7 ' 8 "
3,465
48 "
5 ' 10 "
2.56
Lift-A-Loft
AMC 48-30
30 ' x 0 "
102 " x 30 "
600
8 ' 8 " x 4 ' 0 " x 9 ' 3 "
9,500
–
8 ' 8 "
2.5
Lift-A-Loft
AMR 48-29
33 ' 0 "
36 " x 30 "
–
9 ' 5 " x 4 ' 0 " x 8 ' 10 "
10,400
48 "
8 ' 8 "
2.56
MEC
MMAE16
16 ' 0 "
40 " x 30 "
500
57 " x 30 " x 78.3 "
2,170
60 "
2 " 0 "
2.5
MEC
MME20
20 ' 0 "
29.5 " x 28.5 "
350
54.7 " x 30 " x 78.35 "
2,740
–
0 ' 0 "
2.5
MEC
MME25
25 ' 0 "
29.5 " x 28.5 "
350
56.7 " x 31.5 " x 78.35 "
3,310
–
0 ' 0 "
2.5
MEC
MME30
30 ' 4 "
29 " x 29.5 "
350
5 ' 0 " x 32 " x 5 ' 11.5 "
3,740
47.8 "
0 ' 11 "
3.2
MEC
MME30-RJ
30 ' 0 "
30 " x 40 "
500
8 ' 4 " x 3 ' 4 " x 6 ' 6 "
6,600
–
1 ' 0 "
2.8
Manitou
V ' Air 23
23 ' 0 "
37 " x 27 "
507
7 ' 7 " x 3 ' 7 " x 7 ' 7 "
5,975
37 "
6 ' 6 "
3
Manitou
VJR 26
25 ' 9 "
44 " x 37 "
442
9 ' 2 " x 3 ' 3 " x 6 ' 6 "
5,842
44 "
6 ' 10 "
3
Sinoboom
ML270EJ
27 ' 3 "
39 " x 27.6 "
440
9 ' 9 " x 3 ' 3 " x 6 ' 6 "
5,904
–
0 ' 0 " / 5 ' 1 "
2.5
Sinoboom
VM120E
12 ' 6 "
53 " x 30 "
500
4 ' 6.3 " x 2 ' 6.7 " x 5 ' 5.4 "
1,720
–
5.5 " / 4 ' 5 "
2.5
Sinoboom
VM160EL
16 ' 1 "
53 " x 29 "
500
4 ' 6.3 " x 2 ' 6.7 " x 6 ' 6.3 "
2,138
72.4 "
5.5 " / 4 ' 5 "
2.5
Sinoboom
VM200E AL
19 ' 8.2 "
27.6 " x 29.5 "
353
4 ' 7.1 " x 2 ' 6.7 " x 6 ' 6.3 "
2,601
–
0 ' 0 " / 5 ' 1 "
1.9
Sinoboom
VM260E AL
25 ' 7.1 "
27.6 " x 29.5 "
353
4 ' 8.7 " x 2 ' 6.7 " x 6 ' 6.3 "
3,241
–
0 ' 0 " / 5 ' 1 "
1.9
Skyjack
SJ12 E
12 ' 0 "
36 " x 27 "
500
4 ' 6 " x 2 ' 5 " x 6 ' 2 "
2,012
36 "
0 ' 0 "
2
Skyjack
SJ16 E
15 ' 6 "
36 " x 27 "
500
4 ' 6 " x 2 ' 5 " x 6 ' 2 "
2,054
36 "
0 ' 0 "
2
Skyjack
SJ20 E
19 ' 6 "
36 " x 27 "
350
4 ' 6 " x 2 ' 5 " x 6 ' 8 "
2,440
36 "
0 ' 0 "
2
Snorkel
TM12E
12 ' 0 "
39 " x 27 "
500
4 ' 6 " x 2 ' 6 " x 5 ' 6 "
2,240
59 "
0
2.5
Snorkel
TM16E
16 ' 0 "
39 " x 27 "
500
4 ' 6 " x 2 ' 6 " x 6 ' 6 "
2,430
59 "
0
2.5
Wollard International
TML-704
16 ' 0 "
201 " x 82 "
2,000
18 ' 0 " x 7 ' 4 " x 4 ' 3 "
7,420
210
22 ' 0 "
20
Wollard International
TML-704H
20 ' 0 "
17 " x 6 "
2,000
18 ' 0 " x 7 ' 4 " x 5 ' 4 "
12,500
210
22 ' 0 "
20

AERIAL LIFTS Telescopic Boom Lifts

PLATFORM
HORIZONTAL
JIB RANGE
PLATFORM
PLATFORM
TYPE OF
OUTSIDE
OPERATING
GRADEABILITY
TRAVEL
NET OVERHANG
HEIGHT
OUTREACH
OF MOTION
CAPACITY
DIMENSIONS
DRIVE
TURNING RADIUS
WEIGHT
2WD / 4WD
SPEED
OR TAILSWING
MAKE
MODEL
( FT-IN)
( FT-IN)
( DEG)
( LBS)
( L X W)( IN)
2WD / 4WD
( FT-IN)
( LBS)
(%)
( MPH)
( FT-IN)
Genie
S-40 HF
39 ' 6 "
28 ' 11 "
—
600
3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 9 " / 17 ' 3 "
13,544
- / 45 %
4.0
36 "
Genie
S-45 HF
44 ' 6 "
34 ' 0 "
133
600
3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 9 " / 17 ' 3 "
15,720
- / 45 %
4.0
36 "
Genie
S-40 XC
39 ' 6 "
31 ' 1 "
—
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 10 " / 17 ' 2 "
13,945
- / 45 %
4.0
38 "
Genie
S-40 TraX
39 ' 6 "
31 ' 1 "
—
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 10 " / 17 ' 2 "
17,120
- / 45 %
2.04
38 "
Genie
S-45 XC
44 ' 6 "
36 ' 2 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 10 " / 17 ' 2 "
15,800
- / 45 %
4.0
38 "
Genie
S-45 TraX
44 ' 6 "
36 ' 2 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
6 ' 10 " / 17 ' 2 "
19,010
- / 45 %
2.04
38 "
Genie
S-65 HF
65 ' 2 "
51 ' 2 "
133
600 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
10 ' 10 " / 18 ' 3 "
24,454
- / 45 %
3.0
4 ' 6 "
Genie
S-60 DC
61 ' 2 "
40 ' 6 "
130
660
3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
10 ' 0 "/ 17 ' 3 "
17,600
- / 45 %
4.0
4 ' 1 " / 5 ' 2 "
Genie
S-60 FE
61 ' 2 "
40 ' 6 "
130
660
3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
10 ' 0 "/ 17 ' 3 "
17,750
- / 45 %
4.0
4 ' 1 " / 5 ' 2 "
Genie
S-65 XC
65 ' 0 "
54 ' 2 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
10 ' 6 " / 17 ' 10 "
25,160
- / 45 %
3.0
4 ' 7.5 "
Genie
S-65 TraX
65 ' 0 "
54 ' 2 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
8 ' 0.5 " / 18 ' 5 "
28,877
- / 45 %
2.3
4 ' 7.5 "
Genie
S-85 XC
85 ' 0 "
74 ' 6 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
12 ' 0 " / 21 ' 6 "
39,500
- / 45 %
3.0
5 ' 3 "
Genie
S-85 HF
85 ' 0 "
72 ' 6 "
133
600 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
12 ' 0 " / 21 ' 6 "
38,000
- / 45 %
3.0
5 ' 3 "
Genie
S-85 XC E
85 ' 0 "
74 ' 6 "
133
660 / 1,000( restricted) 3 ' / 2 ' 6 " x 8 ' / 6 '
4WD
11 ' 6 " / 22 ' 3 "
38,908
- / 45 %
3.0
5 ' 9 "
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
