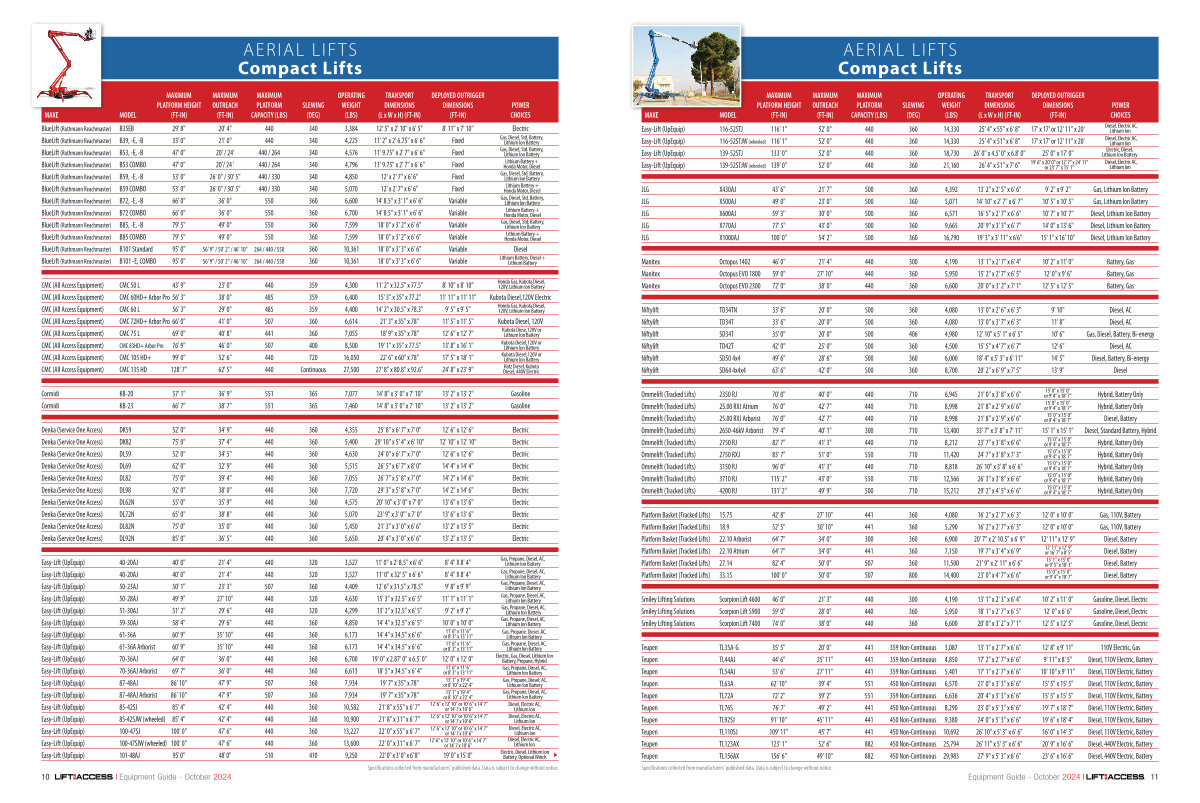

AERIAL LIFTS Compact Lifts
AERIAL LIFTS Compact Lifts
|
|
MAXIMUM |
MAXIMUM |
MAXIMUM |
|
OPERATING |
TRANSPORT |
DEPLOYED OUTRIGGER |
|
|
|
PLATFORM HEIGHT |
OUTREACH |
PLATFORM |
SLEWING |
WEIGHT |
DIMENSIONS |
DIMENSIONS |
POWER |
MAKE |
MODEL |
( FT-IN) |
( FT-IN) |
CAPACITY( LBS) |
( DEG) |
( LBS) |
( L x W x H)( FT-IN) |
( FT-IN) |
CHOICES |
BlueLift( Ruthmann Reachmaster) B35EB 29 ' 8 " 20 ' 4 " 440 340 3,384 12 ' 5 " x 2 ' 10 " x 6 ' 5 " 8 ' 11 " x 7 ' 10 " Electric BlueLift( Ruthmann Reachmaster) B39,-E,-B 33 ' 0 " 21 ' 0 " 440 340 4,225 11 ' 2 " x 2 ' 6.75 " x 6 ' 6 " Fixed BlueLift( Ruthmann Reachmaster) B53,-E,-B 47 ' 0 " 20 ' / 24 ' 440 / 264 340 4,576 11 ' 9.75 " x 2 ' 7 " x 6 ' 6 " Fixed BlueLift( Ruthmann Reachmaster) B53 COMBO 47 ' 0 " 20 '/ 24 ' 440 / 264 340 4,796 11 ' 9.75 " x 2 ' 7 " x 6 ' 6 " Fixed BlueLift( Ruthmann Reachmaster) B59,-E,-B 53 ' 0 " 26 ' 0 " / 30 ' 5 " 440 / 330 340 4,850 12 ' x 2 ' 7 " x 6 ' 6 " Fixed BlueLift( Ruthmann Reachmaster) B59 COMBO 53 ' 0 " 26 ' 0 " / 30 ' 5 " 440 / 330 340 5,070 12 ' x 2 ' 7 " x 6 ' 6 " Fixed BlueLift( Ruthmann Reachmaster) B72,-E,-B 66 ' 0 " 36 ' 0 " 550 360 6,600 14 ' 8.5 " x 3 ' 1 " x 6 ' 6 " Variable BlueLift( Ruthmann Reachmaster) B72 COMBO 66 ' 0 " 36 ' 0 " 550 360 6,700 14 ' 8.5 " x 3 ' 1 " x 6 ' 6 " Variable BlueLift( Ruthmann Reachmaster) B85,-E,-B 79 ' 5 " 49 ' 0 " 550 360 7,599 18 ' 0 " x 3 ' 2 " x 6 ' 6 " Variable BlueLift( Ruthmann Reachmaster) B85 COMBO 79 ' 5 " 49 ' 0 " 550 360 7,599 18 ' 0 " x 3 ' 2 " x 6 ' 6 " Variable BlueLift( Ruthmann Reachmaster) B101 Standard 95 ' 0 " 56 ' 9 " / 50 ' 2 " / 46 ' 10 " 264 / 440 / 550 360 10,361 18 ' 0 " x 3 ' 3 " x 6 ' 6 " Variable Diesel BlueLift( Ruthmann Reachmaster) B101-E, COMBO 95 ' 0 " 56 ' 9 " / 50 ' 2 " / 46 ' 10 " 264 / 440 / 550 360 10,361 18 ' 0 " x 3 ' 3 " x 6 ' 6 " Variable
CMC( All Access Equipment) CMC 50 L 43 ' 9 " 23 ' 0 " 440 359 4,300 11 ' 2 " x 32.5 " x 77.5 " 8 ' 10 " x 8 ' 10 " CMC( All Access Equipment) CMC 60HD + Arbor Pro 56 ' 3 " 38 ' 0 " 485 359 6,400 15 ' 3 " x 35 " x 77.2 " 11 ' 11 " x 11 ' 11 " Kubota Diesel, 120V Electric CMC( All Access Equipment) CMC 60 L 56 ' 3 " 29 ' 0 " 485 359 4,400 14 ' 2 " x 30.5 " x 78.3 " 9 ' 5 " x 9 ' 5 " CMC( All Access Equipment) CMC 72HD + Arbor Pro 66 ' 0 " 41 ' 0 " 507 360 6,614 21 ' 3 " x 35 " x 78 " 11 ' 5 " x 11 ' 5 " Kubota Diesel, 120V CMC( All Access Equipment) CMC 75 L 69 ' 0 " 40 ' 8 " 441 360 7,055 18 ' 9 " x 35 " x 78 " 12 ' 6 " x 12 ' 7 " CMC( All Access Equipment) CMC 83HD + Arbor Pro 76 ' 9 " 46 ' 0 " 507 400 8,500 19 ' 1 " x 35 " x 77.5 " 13 ' 8 " x 16 ' 1 " CMC( All Access Equipment) CMC 105 HD + 99 ' 0 " 52 ' 6 " 440 720 16,050 22 ' 6 " x 60 " x 78 " 17 ' 5 " x 18 ' 1 " CMC( All Access Equipment) CMC 135 HD 128 ' 7 " 62 ' 5 " 440 Continuous 27,500 27 ' 8 " x 80.8 " x 92.6 " 24 ' 8 " x 23 ' 9 "
Gas, Diesel, Std. Battery, Lithium Ion Battery Gas, Diesel, Std. Battery, Lithium Ion Battery Lithium Battery + Honda Motor, Diesel Gas, Diesel, Std. Battery, Lithium Ion Battery Lithium Battery + Honda Motor, Diesel Gas, Diesel, Std. Battery, Lithium Ion Battery Lithium Battery + Honda Motor, Diesel Gas, Diesel, Std. Battery, Lithium Ion Battery Lithium Battery + Honda Motor, Diesel
Lithium Battery, Diesel + Lithium Battery
Honda Gas, Kubota Diesel, 120V, Lithium Ion Battery
Honda Gas, Kubota Diesel, 120V, Lithium Ion Battery
Kubota Diese, 120V or Lithium Ion Battery Kubota Diesel, 120V or Lithium Ion Battery Kubota Diesel, 120V or Lithium Ion Battery Hatz Diesel, Kubota Diesel, 440V Electric
Cormidi KB-20 57 ' 1 " 36 ' 9 " 551 365 7,077 14 ' 8 " x 3 ' 0 " x 7 ' 10 " 13 ' 2 " x 13 ' 2 " Gasoline Cormidi KB-23 66 ' 7 " 38 ' 7 " 551 365 7,460 14 ' 8 " x 3 ' 0 " x 7 ' 10 " 13 ' 2 " x 13 ' 2 " Gasoline
Denka( Service One Access) DK59 52 ' 0 " 34 ' 9 " 440 360 4,355 25 ' 8 " x 6 ' 7 " x 7 ' 0 " 12 ' 6 " x 12 ' 6 " Electric Denka( Service One Access) DK82 75 ' 0 " 37 ' 4 " 440 360 5,400 29 ' 10 " x 5 ' 4 " x 6 ' 10 " 12 ' 10 " x 12 ' 10 " Electric Denka( Service One Access) DL59 52 ' 0 " 34 ' 5 " 440 360 4,630 24 ' 0 " x 6 ' 7 " x 7 ' 0 " 12 ' 6 " x 12 ' 6 " Electric Denka( Service One Access) DL69 62 ' 0 " 32 ' 9 " 440 360 5,515 26 ' 5 " x 6 ' 7 " x 8 ' 0 " 14 ' 4 " x 14 ' 4 " Electric Denka( Service One Access) DL82 75 ' 0 " 39 ' 4 " 440 360 7,055 26 ' 7 " x 5 ' 8 " x 7 ' 0 " 14 ' 2 " x 14 ' 6 " Electric Denka( Service One Access) DL98 92 ' 0 " 38 ' 0 " 440 360 7,720 29 ' 3 " x 5 ' 8 " x 7 ' 0 " 14 ' 2 " x 14 ' 6 " Electric Denka( Service One Access) DL62N 55 ' 0 " 35 ' 9 " 440 360 4,575 20 ' 10 " x 3 ' 0 " x 7 ' 0 " 13 ' 6 " x 13 ' 6 " Electric Denka( Service One Access) DL72N 65 ' 0 " 38 ' 8 " 440 360 5,070 23 ' 9 " x 3 ' 0 "' x 7 ' 0 " 13 ' 6 " x 13 ' 6 " Electric Denka( Service One Access) DL82N 75 ' 0 " 35 ' 0 " 440 360 5,450 21 ' 3 " x 3 ' 0 " x 6 ' 6 " 13 ' 2 " x 13 ' 5 " Electric Denka( Service One Access) DL92N 85 ' 0 " 36 ' 5 " 440 360 5,650 20 ' 4 " x 3 ' 0 " x 6 ' 6 " 13 ' 2 " x 13 ' 5 " Electric
Easy-Lift( UpEquip) 40-20AJ 40 ' 0 " 21 ' 4 " 440 320 3,527 11 ' 0 " x 2 ' 8.5 " x 6 ' 6 " 8 ' 4 " X 8 ' 4 " Easy-Lift( UpEquip) 40-20AJ 40 ' 0 " 21 ' 4 " 440 320 3,527 11 ' 0 " x 32 ' 5 '' x 6 ' 6 " 8 ' 4 " X 8 ' 4 " Easy-Lift( UpEquip) 50-23AJ 50 ' 1 " 23 ' 3 " 507 360 4,409 12 ' 6 " x 31.5 " x 78.5 " 9 ' 8 " x 9 ' 9 " Easy-Lift( UpEquip) 50-28AJ 49 ' 9 " 27 ' 10 " 440 320 4,630 15 ' 3 " x 32.5 '' x 6 ' 5 " 11 ' 1 " x 11 ' 1 "
Easy-Lift( UpEquip) 51-30AJ 51 ' 2 " 29 ' 6 " 440 320 4,299 13 ' 2 " x 32.5 " x 6 ' 5 " 9 ' 2 " x 9 ' 2 " Easy-Lift( UpEquip) 59-30AJ 58 ' 4 " 29 ' 6 " 440 360 4,850 14 ' 4 " x 32.5 " x 6 ' 5 " 10 ' 0 " x 10 ' 0 "
Easy-Lift( UpEquip) 61-36A 60 ' 9 " 35 ' 10 " 440 360 6,173 14 ' 4 " x 34.5 " x 6 ' 6 " Easy-Lift( UpEquip) 61-36A Arborist 60 ' 9 " 35 ' 10 " 440 360 6,173 14 ' 4 " x 34.5 " x 6 ' 6 " Easy-Lift( UpEquip) 70-36AJ 64 ' 0 " 36 ' 0 " 440 360 6,700 19 ' 0 " x 2.87 ' 0 " x 6.5 ' 0 " 12 ' 0 " x 12 ' 0 " Easy-Lift( UpEquip) 70-36AJ Arborist 69 ' 7 " 36 ' 0 " 440 360 6,613 18 ' 5 " x 34.5 " x 6 ' 4 " Easy-Lift( UpEquip) 87-48AJ 86 ' 10 " 47 ' 9 " 507 360 7,934 19 ' 7 " x 35 " x 78 " Easy-Lift( UpEquip) 87-48AJ Arborist 86 ' 10 " 47 ' 9 " 507 360 7,934 19 ' 7 " x 35 " x 78 " Easy-Lift( UpEquip) 85-42SJ 85 ' 4 " 42 ' 4 " 440 360 10,582 21 ' 8 " x 55 " x 6 ' 7 " Easy-Lift( UpEquip) 85-42SJW( wheeled) 85 ' 4 " 42 ' 4 " 440 360 10,900 21 ' 8 " x 31 " x 6 ' 7 " Easy-Lift( UpEquip) 100-47SJ 100 ' 0 " 47 ' 6 " 440 360 13,227 22 ' 0 " x 55 " x 6 ' 7 " Easy-Lift( UpEquip) 100-47SJW( wheeled) 100 ' 0 " 47 ' 6 " 440 360 13,600 22 ' 0 " x 31 " x 6 ' 7 " Easy-Lift( UpEquip) 101-48AJ 95 ' 0 " 48 ' 0 " 510 410 9,250 22 ' 0 " x 3 ' 0 " x 6 ' 8 " 19 ' 0 " x 15 ' 0 "
10 l Equipment Guide- October 2024
11 ' 6 " x 11 ' 6 " or 8 ' 3 " x 13 ' 11 " 11 ' 6 " x 11 ' 6 " or 8 ' 3 " x 13 ' 11 "
11 ' 6 " x 11 ' 6 " or 8 ' 3 " x 13 ' 11 " 13 ' 1 " x 19 ' 4 " or 8 ' 10 " x 22 ' 4 " 13 ' 1 " x 19 ' 4 " or 8 ' 10 " x 22 ' 4 " 12 ' 6 " x 12 ' 10 " or 10 ' 6 " x 14 ' 7 " or 14 ' 7 x 10 ' 6 " 12 ' 6 " x 12 ' 10 " or 10 ' 6 " x 14 ' 7 " or 14 ' 7 x 10 ' 6 " 12 ' 6 " x 12 ' 10 " or 10 ' 6 " x 14 ' 7 " or 14 ' 7 x 10 ' 6 " 12 ' 6 " x 12 ' 10 " or 10 ' 6 " x 14 ' 7 " or 14 ' 7 x 10 ' 6 "
Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Electric, Gas, Diesel, Lithium Ion Battery, Propane, Hybrid Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Gas, Propane, Diesel, AC, Lithium Ion Battery Diesel, Electric AC, Lithium Ion Diesel, Electric AC, Lithium Ion Diesel, Electric AC, Lithium Ion Diesel, Electric AC, Lithium Ion Electric, Diesel, Lithium Ion Battery, Optional Winch
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
