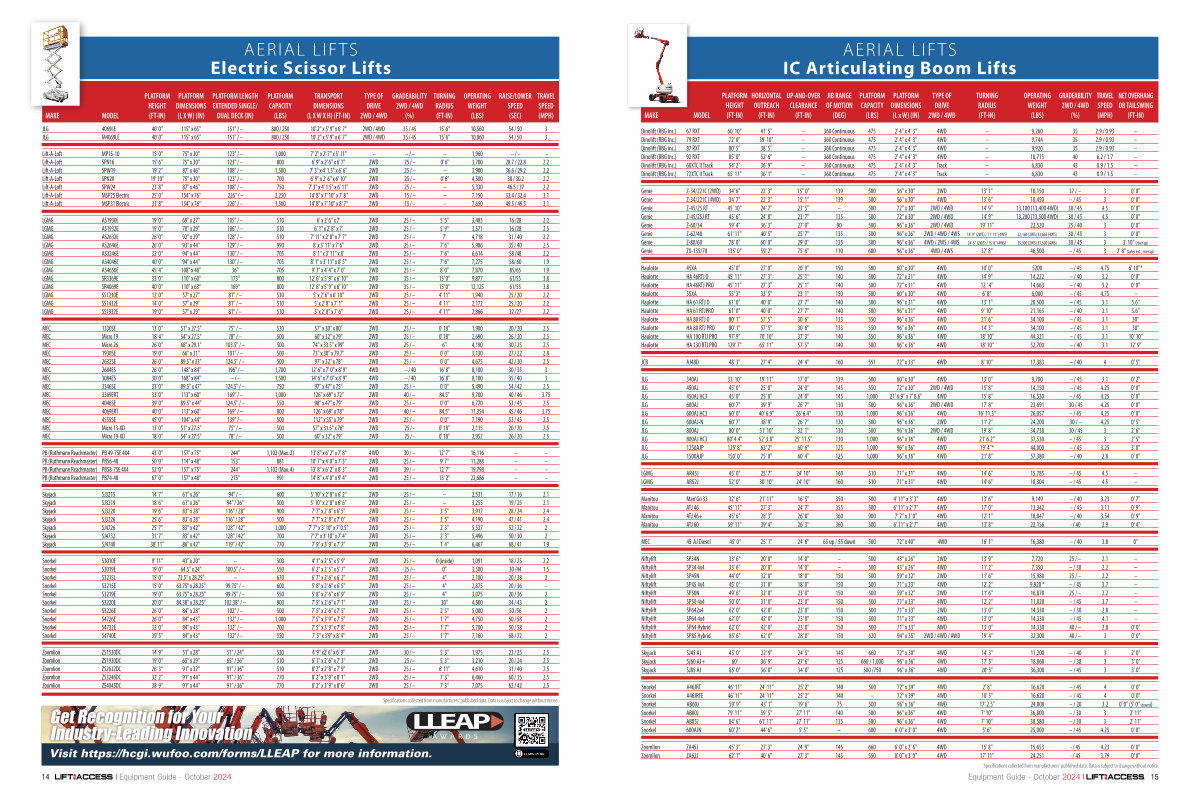

Lift and Access Equipment 2024 Equipment Guide | Page 15

AERIAL LIFTS IC Articulating Boom Lifts

AERIAL LIFTS IC Articulating Boom Lifts

PLATFORM HORIZONTAL
UP-AND-OVER
JIB RANGE
PLATFORM
PLATFORM
TYPE OF
TURNING
OPERATING
GRADEABILITY
TRAVEL
NET OVERHANG
HEIGHT
OUTREACH
CLEARANCE
OF MOTION
CAPACITY
DIMENSIONS
DRIVE
RADIUS
WEIGHT
2WD / 4WD
SPEED
OR TAILSWING
MAKE
MODEL
( FT-IN)
( FT-IN)
( FT-IN)
( DEG)
( LBS)
( L x W)( IN)
2WD / 4WD
( FT-IN)
( LBS)
(%)
( MPH)
( FT-IN)
Dinolift( RBG Inc.)
67 RXT
60 ' 10 "
41 ' 5 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
4WD
–
9,260
35
2.9 / 0.93
–
Dinolift( RBG Inc.)
79 RXT
72 ' 0 "
39 ' 10 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
4WD
–
9,744
35
2.9 / 0.93
–
Dinolift( RBG Inc.)
87 RXT
80 ' 5 "
38 ' 5 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
4WD
–
9,920
35
2.9 / 0.93
–
Dinolift( RBG Inc.)
92 RXT
85 ' 0 "
52 ' 6 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
4WD
–
10,715
40
6.2 / 1.7
–
Dinolift( RBG Inc.)
60XTC II Track
54 ' 2 "
36 ' 9 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
Track
–
6,830
43
0.9 / 1.5
–
Dinolift( RBG Inc.)
72XTC II Track
65 ' 11 "
36 ' 1 "
–
360 Continuous
475
2 ' 4 " x 4 ' 3 "
Track
–
6,830
43
0.9 / 1.5
–
Genie
Z-34 / 22 IC( 2WD)
34 ' 6 "
22 ' 3 "
15 '' 0 "
139
500
56 " x 30 "
2WD
13 ' 1 "
10,150
37 / –
3
0 ' 0 "
Genie
Z-34 / 22 IC( 4WD)
34 ' 7 "
22 ' 3 "
15 ' 1 ''
139
500
56 " x 30 "
4WD
13 ' 6 "
10,450
– / 45
3
0 ' 0 "
Genie
Z-45 / 25 RT
45 ' 10 "
24 ' 7 "
23 ' 5 "
–
500
72 " x 30 "
2WD / 4WD
14 ' 9 "
13,100( 13,400 4WD)
30 / 45
4.5
0 ' 0 "
Genie
Z-45 / 25J RT
45 ' 6 "
24 ' 8 "
23 ' 7 "
135
500
72 " x 30 "
2WD / 4WD
14 ' 9 "
13,200( 13,500 4WD)
30 / 45
4.5
0 ' 0 "
Genie
Z-60 / 34
59 ' 4 "
36 ' 3 "
27 ' 0 "
90
500
96 " x 36 "
2WD / 4WD
19 ' 11 "
22,520
25 / 40
3
0 ' 0 "
Genie
Z-62 / 40
61 ' 11 "
40 ' 5 "
25 ' 7 "
135
500
96 " x 36 "
2WD / 4WD / 4WS
18 ' 9 "( 2WS) / 11 ' 11 "( 4WS)
22,160( 2WS) 22,665( 4WS)
30 / 45
3
0 ' 0 "
Genie
Z-80 / 60
78 ' 0 "
60 ' 0 "
29 ' 0 "
135
500
96 " x 36 "
4WD / 2WS / 4WS
24 ' 6 "( 2WS) / 15 ' 0 "( 4WS)
35,900( 2WS) 37,500( 4WS)
30 / 45
3
3 ' 10 "( riser up)
Genie
ZX-135 / 70
135 ' 0 "
59 ' 2 "
75 ' 6 "
110
600
96 " x 36 "
4WD / 4WS
32 ' 8 "
46,500
– / 45
3
2 ' 8 "( axles ext., riser up)
Haulotte
45XA
45 ' 0 "
27 ' 0 "
20 ' 9 "
150
500
60 " x 30 "
4WD
10 ' 0 "
5200
– / 45
4.75
6 ' 10 "*
Haulotte
HA 46RTJ O
45 ' 11 "
27 ' 3 "
25 ' 1 "
140
500
72 " x 31 "
4WD
14 ' 9 "
14,222
– / 40
3.2
0 ' 0 "
Haulotte
HA 46RTJ PRO
45 ' 11 "
27 ' 3 "
25 ' 1 "
140
500
72 " x 31 "
4WD
12 ' 4 "
14,663
– / 40
3.2
0 ' 0 "
Haulotte
55XA
55 ' 3 "
33 ' 5 "
23 ' 1 "
150
500
60 " x 30 "
4WD
6 ' 8 "
6,000
– / 45
4.75
–
Haulotte
HA 61 RTJ O
61 ' 0 "
40 ' 0 "
27 ' 7 "
140
500
96 " x 31 "
4WD
13 ' 1 "
20,500
– / 45
3.1
5.6 "
Haulotte
HA 61 RTJPRO
61 ' 0 "
40 ' 0 "
27 ' 7 "
140
500
96 " x 31 "
4WD
9 ' 10 "
21,165
– / 40
3.1
5.6 "
Haulotte
HA 80 RTJ O
80 ' 1 "
57 ' 5 "
30 ' 6 "
133
550
96 " x 36 "
4WD
21 ' 6 "
34,100
– / 45
3.1
30 "
Haulotte
HA 80 RTJ PRO
80 ' 1 "
57 ' 5 "
30 ' 6 "
133
550
96 " x 36 "
4WD
14 ' 3 "
34,100
– / 45
3.1
30 "
Haulotte
HA 100 RTJ PRO
97 ' 9 "
70 ' 10 "
37 ' 3 "
140
550
96 " x 36 "
4WD
18 ' 10 "
44,321
– / 45
3.1
10 ' 10 "
Haulotte
HA 130 RTJ PRO
129 ' 7 "
65 ' 11 "
57 ' 5 "
140
500
96 " x 36 "
4WD
18 ' 10 "
52,700
– / 40
3.1
12 ' 9 "
JCB AJ48D 48 ' 3 " 27 ' 4 " 24 ' 4 " 160 551 72 " x 33 " 4WD 8 ' 10 " 17,383 – / 40 4 0 ' 5 "
JLG
340AJ
33 ' 10 "
19 ' 11 "
17 ' 0 "
139
500
60 " x 30 "
4WD
13 ' 0 "
9,700
– / 45
3.1
0 ' 2 "
JLG
450AJ
45 ' 0 "
25 ' 0 "
24 ' 0 "
145
550
72 " x 30 "
2WD / 4WD
15 ' 8 "
14,150
– / 45
4.25
0 ' 0 "
JLG
450AJ HC3
45 ' 0 "
25 ' 0 "
24 ' 0 "
145
1,000
21 ' 6.9 " x 7 ' 8.6 "
4WD
15 ' 8 "
16,530
– / 45
4.25
0 ' 0 "
JLG
600AJ
60 ' 7 "
39 ' 9 "
26 ' 7 "
130
500
96 " x 36 "
2WD / 4WD
17 ' 8 "
22,691
30 / 45
4.25
0 ' 0 "
JLG
600AJ HC3
60 ' 0 "
40 ' 6.9 "
26 ' 6.4 "
130
1,000
96 " x 36 "
4WD
16 ' 11.3 "
26,057
– / 45
4.25
0 ' 0 "
JLG
600AJ-N
60 ' 7 "
38 ' 9 "
26 ' 7 "
130
500
96 " x 36 "
2WD
11 ' 2 "
24,200
30 / –
4.25
0 ' 5 "
JLG
800AJ
80 ' 0 "
51 ' 10 "
32 ' 1 "
130
500
96 " x 36 "
2WD / 4WD
19 ' 8 "
34,738
30 / 45
3
2 ' 6 "
JLG
800AJ HC3
80 ' 4.4 "
52 ' 3.8 "
25 ' 11.5 "
130
1,000
96 " x 36 "
4WD
21 ' 6.2 "
37,530
– / 45
3
2 ' 5 "
JLG
1250AJP
125 ' 8 "
63 ' 2 "
60 ' 6 "
125
1,000
96 " x 36 "
4WD
19 ' 4 "*
44,000
– / 45
3.25
3 ' 0 "
JLG
1500AJP
150 ' 0 "
75 ' 0 "
60 ' 4 "
125
1,000
96 " x 36 "
4WD
21 ' 8 "
57,380
– / 40
2.8
0 ' 0 "
LGMG
AR45J
45 ' 0 "
25 ' 7 "
24 ' 10 "
160
510
71 " x 31 "
4WD
14 ' 6 "
15,785
– / 45
4.5
–
LGMG
AR52J
52 ' 0 "
30 ' 10 "
24 ' 10 "
160
510
71 " x 31 "
4WD
14 ' 6 "
18,304
– / 45
4.5
–
Manitou
Man ' Go 33
32 ' 6 "
21 ' 11 "
16 ' 5 "
350
500
4 ' 11 " x 3 ' 3 "
4WD
13 ' 6 "
9,149
– / 40
3.23
0 ' 7 "
Manitou
ATJ 46
45 ' 11 "
27 ' 3 "
24 ' 7 "
355
500
6 ' 11 " x 2 ' 7 "
4WD
17 ' 0 "
13,342
– / 45
3.11
0 ' 9 "
Manitou
ATJ 46 +
45 ' 6 "
28 ' 3 "
26 ' 8 "
360
900
7 ' 7 " x 3 ' 0 "
4WD
12 ' 1 "
18,047
– / 40
3.54
0 ' 9 "
Manitou
ATJ 60
59 ' 11 "
39 ' 4 "
26 ' 3 "
360
500
6 ' 11 " x 2 ' 7 "
4WD
13 ' 8 "
22,156
- / 40
2.9
0 ' 4 "
MEC 45-AJ Diesel 45 ' 0 " 25 ' 1 " 24 ' 6 " 65 up / 55 down 500 72 " x 40 " 4WD 16 ' 1 " 16,380 – / 40 3.8 0 "
Niftylift
SP34N
33 ' 6 "
20 ' 0 "
14 ' 0 "
–
500
43 " x 26 "
2WD
13 ' 9 "
7,720
25 / –
2.1
–
Niftylift
SP34 4x4
33 ' 6 "
20 ' 0 "
14 ' 0 "
–
500
43 " x 26 "
4WD
11 ' 2 "
7,350
– / 30
2.2
–
Niftylift
SP45N
44 ' 0 "
32 ' 0 "
18 ' 0 "
150
500
59 " x 32 "
2WD
11 ' 6 "
15,980
25 / –
2.2
–
Niftylift
SP45 4x4
45 ' 0 "
31 ' 0 "
18 ' 0 "
150
500
71 " x 33 "
4WD
12 ' 2 "
9,920 *
– / 45
3.7
–
Niftylift
SP50N
49 ' 6 "
32 ' 0 "
23 ' 0 "
150
500
59 " x 32 "
2WD
11 ' 6 "
16,870
25 / –
2.2
–
Niftylift
SP50 4x4
50 ' 0 "
31 ' 0 "
23 ' 0 "
150
500
71 " x 33 "
4WD
12 ' 2 "
11,020
– / 45
3.7
–
Niftylift
SP642x4
62 ' 0 "
42 ' 0 "
23 ' 0 "
150
500
71 " x 33 "
2WD
13 ' 0 "
14,330
– / 30
2.8
–
Niftylift
SP64 4x4
62 ' 0 "
42 ' 0 "
23 ' 0 "
150
500
71 " x 33 "
4WD
13 ' 0 "
14,330
– / 45
4.1
–
Niftylift
SP64 Hybrid
62 ' 0 "
42 ' 0 "
23 ' 0 "
150
500
71 " x 33 "
AWD
13 ' 0 "
14,330
40 / –
2.8
0 ' 0 "
Niftylift
SP85 Hybrid
85 ' 6 "
62 ' 0 "
28 ' 0 "
150
620
94 " x 35 "
2WD / 4WD / AWD
19 ' 4 "
32,300
40 / –
3
0 ' 0 "
Skyjack
SJ45 AJ
45 ' 0 "
22 ' 9 "
24 ' 5 "
145
660
72 " x 30 "
4WD
14 ' 3 "
11,200
– / 40
3
2 ' 0 "
Skyjack
SJ60 AJ +
60 '
36 ' 9 "
27 ' 6 "
125
660 / 1,000
96 " x 36 "
4WD
17 ' 5 "
18,060
– / 38
3
3 ' 0 "
Skyjack
SJ85 AJ
85 ' 0 "
56 ' 0 "
34 ' 0 "
125
500 / 750
96 " x 36 "
4WD
20 ' 5 "
36,300
– / 45
3
3 ' 0 "
Snorkel
A46JRT
46 ' 11 "
24 ' 11 "
25 ' 2 "
140
500
72 " x 39 "
4WD
2 ' 8 "
16,620
– / 45
4
0 ' 0 "
Snorkel
A46JRTE
46 ' 11 "
24 ' 11 "
25 ' 2 "
140
–
72 " x 39 "
4WD
10 ' 5 "
16,620
– / 45
4
0 ' 0 "
Snorkel
AB60J
59 ' 9 "
43 ' 1 "
19 ' 6 "
75
500
96 " x 36 "
4WD
17 ' 2.5 "
24,800
– / 20
3.2
0 ' 0 "( 5 ' 0 " stowed)
Snorkel
AB80J
79 ' 11 "
59 ' 5 "
27 ' 11 "
140
500
96 " x 36 "
4WD
7 ' 10 "
36,800
– / 30
3
2 ' 11 "
Snorkel
AB85J
84 ' 6 "
61 ' 11 "
27 ' 11 "
135
500
96 " x 36 "
4WD
7 ' 10 "
38,580
– / 30
3
2 ' 11 "
Snorkel
600AJN
60 ' 2 "
44 ' 6 "
5 ' 5 "
–
600
6 ' 0 " x 3 ' 0 "
4WD
5 ' 6 "
25,000
– / 45
4.25
0 ' 0 "
Zoomlion
ZA45J
45 ' 3 "
27 ' 3 "
24 ' 9 "
145
660
6 ' 0 " x 2 ' 6 "
4WD
15 ' 8 "
15,653
- / 45
4.23
0 ' 0 "
Zoomlion
ZA62J
62 ' 1 "
40 ' 6 "
27 ' 3 "
145
550
8 ' 0 " x 3 ' 0 "
4WD
17 ' 11 "
24,251
- / 45
3.79
0 ' 0 "
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
Equipment Guide- October 2024 l 15
