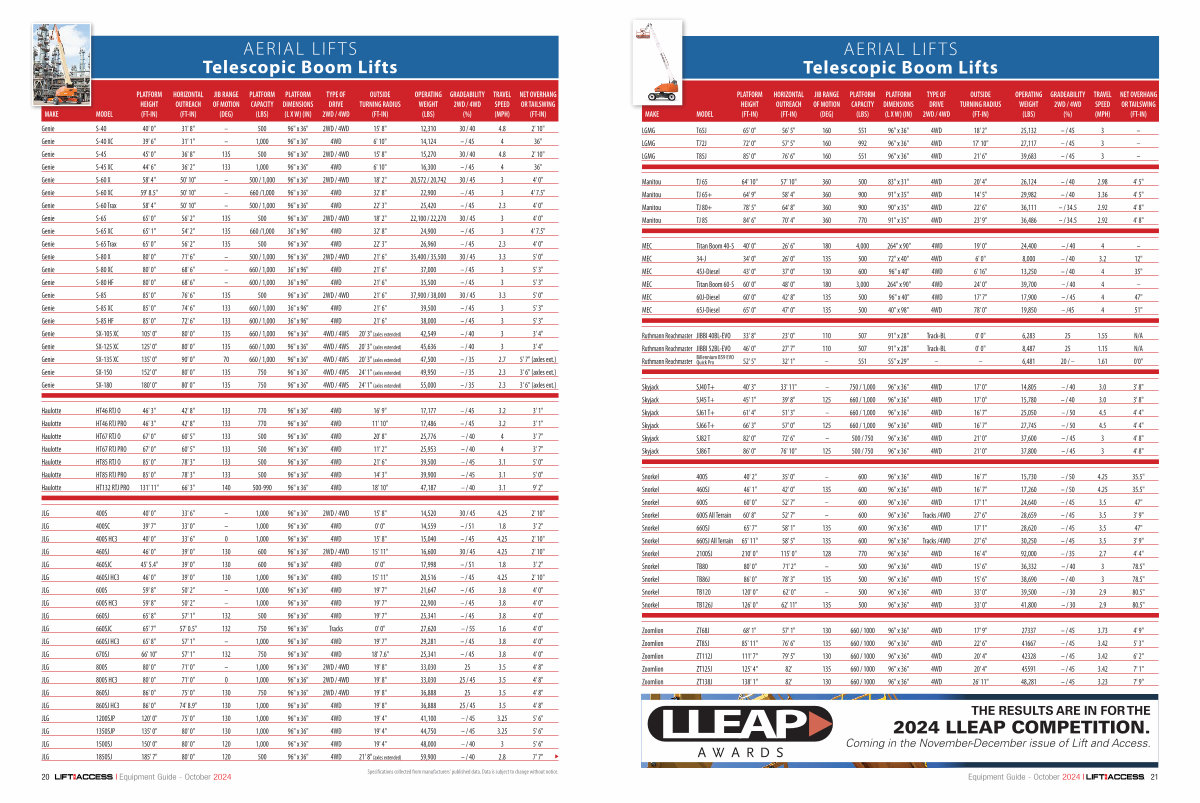

Lift and Access Equipment 2024 Equipment Guide | Page 20

AERIAL LIFTS Telescopic Boom Lifts

AERIAL LIFTS Telescopic Boom Lifts

PLATFORM
HORIZONTAL
JIB RANGE
PLATFORM
PLATFORM
TYPE OF
OUTSIDE
OPERATING
GRADEABILITY
TRAVEL
NET OVERHANG
HEIGHT
OUTREACH
OF MOTION
CAPACITY
DIMENSIONS
DRIVE
TURNING RADIUS
WEIGHT
2WD / 4WD
SPEED
OR TAILSWING
MAKE
MODEL
( FT-IN)
( FT-IN)
( DEG)
( LBS)
( L X W)( IN)
2WD / 4WD
( FT-IN)
( LBS)
(%)
( MPH)
( FT-IN)
Genie S-40 40 ' 0 " 31 ' 8 " – 500 96 " x 36 " 2WD / 4WD 15 ' 8 " 12,310 30 / 40 4.8 2 ' 10 " Genie S-40 XC 39 ' 6 " 31 ' 1 " – 1,000 96 " x 36 " 4WD 6 ' 10 " 14,124 – / 45 4 36 " Genie S-45 45 ' 0 " 36 ' 8 " 135 500 96 " x 36 " 2WD / 4WD 15 ' 8 " 15,270 30 / 40 4.8 2 ' 10 " Genie S-45 XC 44 ' 6 " 36 ' 2 " 133 1,000 96 " x 36 " 4WD 6 ' 10 " 16,300 – / 45 4 36 " Genie S-60 X 58 ' 4 '' 50 ' 10 " – 500 / 1,000 96 " x 36 " 2WD / 4WD 18 ' 2 " 20,572 / 20,742 30 / 45 3 4 ' 0 " Genie S-60 XC 59 ' 8.5 '' 50 ' 10 " – 660 / 1,000 96 " x 36 " 4WD 32 ' 8 " 22,900 – / 45 3 4 ' 7.5 " Genie S-60 Trax 58 ' 4 '' 50 ' 10 " – 500 / 1,000 96 " x 36 " 4WD 22 ' 3 " 25,420 – / 45 2.3 4 ' 0 " Genie S-65 65 ' 0 " 56 ' 2 " 135 500 96 " x 36 " 2WD / 4WD 18 ' 2 " 22,100 / 22,270 30 / 45 3 4 ' 0 " Genie S-65 XC 65 ' 1 " 54 ' 2 " 135 660 / 1,000 36 " x 96 " 4WD 32 ' 8 " 24,900 – / 45 3 4 ' 7.5 " Genie S-65 Trax 65 ' 0 '' 56 ' 2 " 135 500 96 " x 36 " 4WD 22 ' 3 " 26,960 – / 45 2.3 4 ' 0 " Genie S-80 X 80 ' 0 " 71 ' 6 " – 500 / 1,000 96 " x 36 " 2WD / 4WD 21 ' 6 " 35,400 / 35,500 30 / 45 3.3 5 ' 0 " Genie S-80 XC 80 ' 0 " 68 ' 6 " – 660 / 1,000 36 " x 96 " 4WD 21 ' 6 " 37,000 – / 45 3 5 ' 3 " Genie S-80 HF 80 ' 0 " 68 ' 6 " – 600 / 1,000 36 " x 96 " 4WD 21 ' 6 " 35,500 – / 45 3 5 ' 3 " Genie S-85 85 ' 0 " 76 ' 6 " 135 500 96 " x 36 " 2WD / 4WD 21 ' 6 " 37,900 / 38,000 30 / 45 3.3 5 ' 0 " Genie S-85 XC 85 ' 0 " 74 ' 6 " 133 660 / 1,000 36 " x 96 " 4WD 21 ' 6 " 39,500 – / 45 3 5 ' 3 " Genie S-85 HF 85 ' 0 " 72 ' 6 " 133 600 / 1,000 36 " x 96 " 4WD 21 ' 6 " 38,000 – / 45 3 5 ' 3 " Genie SX-105 XC 105 ' 0 " 80 ' 0 " 135 660 / 1,000 96 " x 36 " 4WD / 4WS 20 ' 3 "( axles extended) 42,549 – / 40 3 3 ' 4 " Genie SX-125 XC 125 ' 0 " 80 ' 0 " 135 660 / 1,000 96 " x 36 " 4WD / 4WS 20 ' 3 "( axles extended) 45,636 – / 40 3 3 ' 4 " Genie SX-135 XC 135 ' 0 " 90 ' 0 " 70 660 / 1,000 96 " x 36 " 4WD / 4WS 20 ' 3 "( axles extended) 47,500 – / 35 2.7 5 ' 7 "( axles ext.) Genie SX-150 152 ' 0 " 80 ' 0 " 135 750 96 " x 36 " 4WD / 4WS 24 ' 1 "( axles extended) 49,950 – / 35 2.3 3 ' 6 "( axles ext.) Genie SX-180 180 ' 0 '' 80 ' 0 '' 135 750 96 " x 36 " 4WD / 4WS 24 ' 1 "( axles extended) 55,000 – / 35 2.3 3 ' 6 ''( axles ext.)
Haulotte
HT46 RTJ O
46 ' 3 "
42 ' 8 "
133
770
96 " x 36 "
4WD
16 ' 9 "
17,177
– / 45
3.2
3 ' 1 "
Haulotte
HT46 RTJ PRO
46 ' 3 "
42 ' 8 "
133
770
96 " x 36 "
4WD
11 ' 10 "
17,486
– / 45
3.2
3 ' 1 "
Haulotte
HT67 RTJ O
67 ' 0 "
60 ' 5 "
133
500
96 " x 36 "
4WD
20 ' 8 "
25,776
– / 40
4
3 ' 7 "
Haulotte
HT67 RTJ PRO
67 ' 0 "
60 ' 5 "
133
500
96 " x 36 "
4WD
11 ' 2 "
25,953
– / 40
4
3 ' 7 "
Haulotte
HT85 RTJ O
85 ' 0 "
78 ' 3 "
133
500
96 " x 36 "
4WD
21 ' 6 "
39,500
– / 45
3.1
5 ' 0 "
Haulotte
HT85 RTJ PRO
85 ' 0 "
78 ' 3 "
133
500
96 " x 36 "
4WD
14 ' 3 "
39,900
– / 45
3.1
5 ' 0 "
Haulotte
HT132 RTJ PRO
131 ' 11 "
66 ' 3 "
140
500-990
96 " x 36 "
4WD
18 ' 10 "
47,187
– / 40
3.1
9 ' 2 "
JLG
400S
40 ' 0 "
33 ' 6 "
–
1,000
96 " x 36 "
2WD / 4WD
15 ' 8 "
14,520
30 / 45
4.25
2 ' 10 "
JLG
400SC
39 ' 7 "
33 ' 0 "
–
1,000
96 " x 36 "
4WD
0 ' 0 "
14,559
– / 51
1.8
3 ' 2 "
JLG
400S HC3
40 ' 0 "
33 ' 6 "
0
1,000
96 " x 36 "
4WD
15 ' 8 "
15,040
– / 45
4.25
2 ' 10 "
JLG
460SJ
46 ' 0 "
39 ' 0 "
130
600
96 " x 36 "
2WD / 4WD
15 ' 11 "
16,600
30 / 45
4.25
2 ' 10 "
JLG
460SJC
45 ' 5.4 "
39 ' 0 "
130
600
96 " x 36 "
4WD
0 ' 0 "
17,998
– / 51
1.8
3 ' 2 "
JLG
460SJ HC3
46 ' 0 "
39 ' 0 "
130
1,000
96 " x 36 "
4WD
15 ' 11 "
20,516
– / 45
4.25
2 ' 10 "
JLG
600S
59 ' 8 "
50 ' 2 "
–
1,000
96 " x 36 "
4WD
19 ' 7 "
21,647
– / 45
3.8
4 ' 0 "
JLG
600S HC3
59 ' 8 "
50 ' 2 "
–
1,000
96 " x 36 "
4WD
19 ' 7 "
22,900
– / 45
3.8
4 ' 0 "
JLG
660SJ
65 ' 8 "
57 ' 1 "
132
500
96 " x 36 "
4WD
19 ' 7 "
25,341
– / 45
3.8
4 ' 0 "
JLG
660SJC
65 ' 7 "
57 ' 0.5 "
132
750
96 " x 36 "
Tracks
0 ' 0 "
27,620
– / 55
1.6
4 ' 0 "
JLG
660SJ HC3
65 ' 8 "
57 ' 1 "
–
1,000
96 " x 36 "
4WD
19 ' 7 "
29,281
– / 45
3.8
4 ' 0 "
JLG
670SJ
66 ' 10 "
57 ' 1 "
132
750
96 " x 36 "
4WD
18 ' 7.6 "
25,341
– / 45
3.8
4 ' 0 "
JLG
800S
80 ' 0 "
71 ' 0 "
–
1,000
96 " x 36 "
2WD / 4WD
19 ' 8 "
33,030
25
3.5
4 ' 8 "
JLG
800S HC3
80 ' 0 "
71 ' 0 "
0
1,000
96 " x 36 "
2WD / 4WD
19 ' 8 "
33,030
25 / 45
3.5
4 ' 8 "
JLG
860SJ
86 ' 0 "
75 ' 0 "
130
750
96 " x 36 "
2WD / 4WD
19 ' 8 "
36,888
25
3.5
4 ' 8 "
JLG
860SJ HC3
86 ' 0 "
74 ' 8.9 "
130
1,000
96 " x 36 "
4WD
19 ' 8 "
36,888
25 / 45
3.5
4 ' 8 "
JLG
1200SJP
120 ' 0 "
75 ' 0 "
130
1,000
96 " x 36 "
4WD
19 ' 4 "
41,100
– / 45
3.25
5 ' 6 "
JLG
1350SJP
135 ' 0 "
80 ' 0 "
130
1,000
96 " x 36 "
4WD
19 ' 4 "
44,750
– / 45
3.25
5 ' 6 "
JLG
1500SJ
150 ' 0 "
80 ' 0 "
120
1,000
96 " x 36 "
4WD
19 ' 4 "
48,000
– / 40
3
5 ' 6 "
JLG
1850SJ
185 ' 7 "
80 ' 0 "
120
500
96 " x 36 "
4WD
21 ' 8 "( axles extended)
59,900
– / 40
2.8
7 ' 7 "
20 l Equipment Guide- October 2024
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
