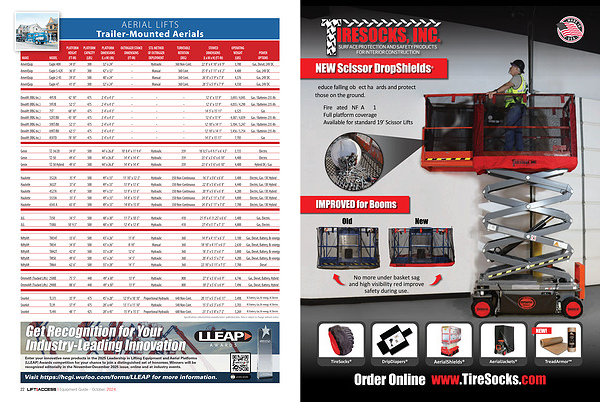

Lift and Access Equipment 2024 Equipment Guide | Page 22

AERIAL LIFTS Trailer-Mounted Aerials

AERIAL LIFTS Trailer-Mounted Aerials

PLATFORM
PLATFORM
PLATFORM
OUTRIGGER STANCE
STD. METHOD
TURNTABLE
STOWED
OPERATING
HEIGHT
CAPACITY
DIMENSIONS
DIMENSIONS
OF OUTRIGGER
ROTATION
DIMENSIONS
WEIGHT
POWER
MAKE
MODEL
( FT-IN)
( LBS)
( L x W)( IN)
( FT-IN)
DEPLOYMENT
( DEG)
( L x W x H)( FT-IN)
( LBS)
OPTIONS
AmeriQuip Eagle 40H 34 ' 0 " 300 32 " x 24 " – Hydraulic 360 Non-Cont. 22 ' 8 " x 4 ' 10 " x 6 ' 9 " 3,780 Gas, Diesel, 24V DC AmeriQuip Eagle S-42X 36 ' 0 " 300 42 " x 32 " – Manual 360 Cont. 25 ' 0 " x 5 ' 11 " x 6 ' 2 " 4,400 Gas, 24V DC AmeriQuip Eagle 2-45 39 ' 0 " 500 48 " x 24 " – Manual 360 Cont. 26 ' 0 " x 5 ' 9 " x 7 ' 8 " 4,576 Gas, 24V DC AmeriQuip Eagle 47 41 ' 0 " 300 32 " x 24 " – Manual 360 Cont. 28 ' 5 " x 5 ' 9 " x 7 ' 9 " 4,550 Gas, 24V DC
Dinolift( RBG Inc.)
49T / B
42 ' 10 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
12 ' 6 " x 13 ' 9 "
3,693 / 4,045
Gas / Batteries 235 Ah
Dinolift( RBG Inc.)
59T / B
52 ' 5 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
12 ' 6 " x 13 ' 9 "
4,055 / 4,290
Gas / Batteries 235 Ah
Dinolift( RBG Inc.)
75T
68 ' 10 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
14 ' 5 " x 15 ' 11 "
6,525
Gas
Dinolift( RBG Inc.)
52XT / BII
45 ' 10 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
12 ' 6 " x 13 ' 9 "
4,387 / 4,839
Gas / Batteries 235 Ah
Dinolift( RBG Inc.)
59XT / BII
52 ' 5 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
12 ' 10 " x 14 ' 1 "
5,104 / 5,247
Gas / Batteries 235 Ah
Dinolift( RBG Inc.)
69XT / BII
62 ' 5 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
12 ' 10 " x 14 ' 1 "
5,456 / 5,754
Gas / Batteries 235 Ah
Dinolift( RBG Inc.)
85XTD
78 ' 10 "
475
2 ' 4 " x 4 ' 3 "
–
–
–
14 ' 5 " x 15 ' 11 "
7,705
Gas
Genie TZ-34 / 20 34 ' 0 " 500 44 " x 26.8 " 10 ' 8.4 " x 11 ' 9.4 " Hydraulic 359 18 ' 0.5 " x 4 ' 9.1 " x 6 ' 4.5 " 3,155 Electric Genie TZ-50 49 ' 6 " 500 44 " x 26.8 " 14 ' 4 " x 14 ' 4 " Hydraulic 359 23 ' 6 " x 5 ' 6 " x 6 ' 10 " 4,400 Electric Genie TZ-50 Hybrid 49 ' 6 " 500 44 " x 26.8 " 14 ' 4 " x 14 ' 4 " Hydraulic 359 23 ' 6 " x 5 ' 6 " x 6 ' 10 " 4,400 Hybrid DC / Gas
Haulotte
3522A
35 ' 9 "
500
49 " x 33 "
11 ' 10 " x 12 ' 2 "
Hydraulic
350 Non-Continuous
16 ' 3 " x 5 ' 6 " x 6 ' 8 "
3,400
Electric, Gas / DC Hybrid
Haulotte
3632T
37 ' 6 "
500
49 " x 33 "
13 ' 9 " x 13 ' 6 "
Hydraulic
350 Non-Continuous
22 ' 8 " x 5 ' 6 " x 6 ' 8 "
4,440
Electric, Gas / DC Hybrid
Haulotte
4527A
45 ' 0 "
500
49 " x 33 "
13 ' 9 " x 13 ' 6 "
Hydraulic
350 Non-Continuous
20 ' 9 " x 5 ' 6 " x 6 ' 8 "
4,200
Electric, Gas / DC Hybrid
Haulotte
5533A
55 ' 3 "
500
49 " x 33 "
14 ' 8 " x 15 ' 0 "
Hydraulic
350 Non-Continuous
24 ' 0 " x 5 ' 11 " x 7 ' 0 "
4,800
Electric, Gas / DC Hybrid
Haulotte
6543 A
65 ' 0 "
500
49 " x 33 "
14 ' 8 " x 15 ' 0 "
Hydraulic
350 Non-Continuous
24 ' 0 " x 5 ' 11 " x 7 ' 0 "
7,700
Electric, Gas / DC Hybrid
JLG T350 34 ' 5 " 500 48 " x 30 " 11 ' 7 " x 10 ' 5 " Hydraulic 410 21 ' 9 " x 4 ' 11.25 " x 6 ' 6 " 3,400 Gas, Electric JLG T500J 50 ' 9.5 " 500 48 " x 30 " 12 ' 4 " x 12 ' 8 " Hydraulic 410 27 ' 4 " x 5 ' 7 " x 7 '. 5 " 4,800 Gas, Electric
Niftylift
TM34T
33 ' 6 "
500
43 " x 26 "
11 ' 8 "
Hydraulic
360
14 ' 9 " x 4 ' 11 " x 6 ' 3 "
3,100
Gas, Diesel, Battery, Bi-energy
Niftylift
TM34
34 ' 0 "
500
43 " x 26 "
8 ' 10 "
Manual
360
18 ' 10 " x 4 ' 11 " x 6 ' 3 "
2,630
Gas, Diesel, Battery, Bi-energy
Niftylift
TM42T
42 ' 0 "
500
55 " x 28 "
12 ' 6 "
Hydraulic
360
18 ' 3 " x 5 ' 3 " x 6 ' 7 "
3,800
Gas, Diesel, Battery, Bi-energy
Niftylift
TM50
49 ' 6 "
500
43 " x 26 "
14 ' 5 "
Hydraulic
360
20 ' 4 " x 5 ' 5 " x 7 ' 0 "
4,200
Gas, Diesel, Battery, Bi-energy
Niftylift
TM64
62 ' 6 "
500
55 " x 28 "
14 ' 1 "
Hydraulic
360
22 ' 10 " x 5 ' 11 " x 7 ' 5 "
7,700
Diesel
Ommelift( Tracked Lifts) 2500E 75 ' 5 " 440 49 " x 30 " 13 ' 9 " Hydraulic 800 27 ' 6 " x 5 ' 6 " x 6 ' 9 " 6,746 Gas, Diesel, Battery, Hybrid Ommelift( Tracked Lifts) 2900E 88 ' 6 " 440 49 " x 30 " 13 ' 9 " Hydraulic 800 30 ' 2 " x 5 ' 6 " x 6 ' 9 " 7,496 Gas, Diesel, Battery, Hybrid
Snorkel TL37J 35 ' 9 " 475 45 " x 28 " 12 ' 9 " x 10 ' 10 " Proportional Hydraulic 640 Non-Cont. 20 ' 11 " x 5 ' 3 " x 6 ' 11 " 3,498
Snorkel TL39 37 ' 9 " 475 28 " x 44 " 13 ' 1 " x 11 ' 10 " Hydraulic 540 Non-Cont. 15 ' 5 " x 5 ' 3 " x 6 ' 7 " 3,703 Snorkel TL49J 48 ' 1 " 425 28 " x 45 " 15 ' 9 " x 15 ' 5 " Proportional Hydraulic 680 Non-Cont. 23 ' 3 " x 5 ' 8 " x 7 ' 2 " 5,269

Get Recognition for Your Industry-Leading Innovation

Enter your innovative new products in the 2025 Leadership in Lifting Equipment and Aerial Platforms( LLEAP) Awards competition for your chance to join a distinguished set of honorees. Winners will be recognized editorially in the November-December 2025 issue, online and at industry events. www. liftandaccess. com
Visit https:// hcgi. wufoo. com / forms / LLEAP for more information.
DC Battery, Gas, Bi-energy, AC Electric DC Battery, Gas, Bi-energy, AC Electric DC Battery, Gas, Bi-energy, AC Electric
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
