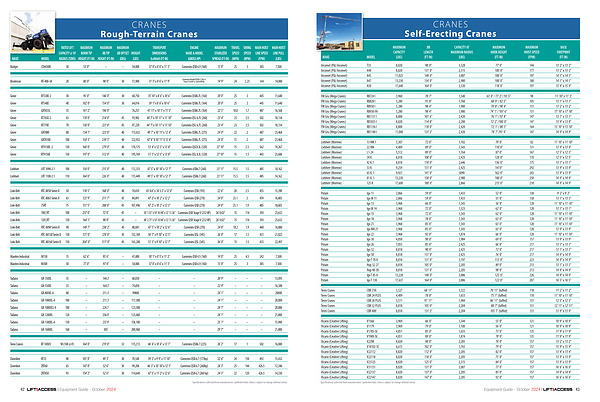

CRANES Rough-Terrain Cranes

CRANES Rough-Terrain Cranes

RATED LIFT
MAXIMUM
MAXIMUM
MAXIMUM
TRANSPORT
ENGINE
MAXIMUM
TRAVEL
SWING
MAIN HOIST
MAIN HOIST
CAPACITY @ 10 '
BOOM TIP
JIB TIP
JIB OFFSET
WEIGHT
DIMENSIONS
MAKE & MODEL
STABILIZER
SPEED
SPEED
LINE SPEED
LINE PULL
MAKE
MODEL
RADIUS( TONS)
HEIGHT( FT-IN)
HEIGHT( FT-IN)
( DEG)
( LBS)
( LxWxH)( FT-IN)
( GROSS HP)
SPREAD( FT-IN)
( MPH)
( RPM)
( FPM)
( LBS)
Badger CD4430R 30 53 ' 0 " – – 54,000 37 ' 0 " x 8 ' 6 " x 11 ' 3 " Cummins QSB 6.9( 160) 15 ' 0 " 25 3 385 7,500
Cummins Model QSB4.5 Tier 4
Broderson RT-400-3A 20 80 ' 0 " 98 ' 0 " 30 51,900 31 ' 3 " x 8 ' 6 " x 11 ' 9 " Final( 163HP @ 2600 RPM) 14 ' 9 " 24 2.23 144 14,000
Grove
RT530E-2
30
95 ' 0 "
146 ' 0 "
30
60,750
35 ' 10 " x 8 ' 6 " x 10 ' 6 "
Cummins QSB6.7L( 164)
20 ' 0 "
25
2
445
11,640
Grove
RT540E
40
102 ' 0 "
154 ' 0 "
30
64,016
39 ' 1 " x 8 ' 6 " x 10 ' 6 "
Cummins QSB6.7L( 164)
20 ' 0 "
25
2
445
11,640
Grove
GRT655L
55
141 ' 2 ''
196 ' 0 ''
76,257
41 ' 11 '' x 10 ' 1 '' x 11 ' 5 ''
Cummins QSB6.7L( 164)
22 ' 5 "
18.8
1.7
487
16,568
Grove
RT765E-2
65
110 ' 0 "
214 ' 0 "
45
93,902
44 ' 7 " x 10 ' 11 " x 11 ' 10 "
Cummins QSL 6.7L( 260)
23 ' 4 "
23
2.5
502
18,134
Grove
RT770E
70
138 ' 0 "
221 ' 0 "
45
97,220
44 ' 7 " x 10 ' 11 " x 11 ' 10 "
Cummins QSL 6.7L( 260)
23 ' 4 "
23
2.5
502
18,134
Grove
GRT880
80
134 ' 7 '
223 ' 0 "
40
115,632
49 ' 7 " x 10 ' 11 " x 12 ' 4 "
Cummins QSB6.7L( 275)
24 ' 0 "
22
2
487
23,468
Grove
GRT8100
100
154 ' 3 "
239 ' 5 "
40
122,932
47 ' 8 " X 10 ' 11 " X 12 ' 4 "
Cummins QSB6.7L( 275)
24 ' 0 "
15
2
487
23,468
Grove
RT9130E-2
130
160 ' 0 "
279 ' 0 "
40
176,175
53 ' 4 " x 12 ' 5 " x 13 ' 8 "
Cummins QSC8.3L( 320)
27 ' 10 "
15
2.5
562
19,267
Grove
RT9150E
150
197 ' 0 "
312 ' 0 "
40
195,769
51 ' 1 " x 12 ' 5 " x 13 ' 8 "
Cummins QSL 8.3L( 320)
27 ' 10 "
15
1.5
443
23,606
Liebherr LRT 1090-2.1 100 154 ' 0 " 215 ' 0 " 40 112,333 47 ' 5 " x 10 ' 10 " x 12 ' 7 " Cummins 6SB6.7( 260) 23 ' 11 " 15.5 1.5 485 14,162 Liebherr LRT 1100-2.1 110 164 ' 0 " 226 ' 0 " 40 115,449 49 ' 5 " x 10 ' 10 " x 12 ' 7 " Cummins QSB6.7( 260) 23 ' 11 " 15.5 1.5 485 14,162
Link-Belt
RTC-8050 Series II
50
118 ' 5 "
168 ' 0 "
40
74,659
43 ' 8.6 " x 10 ' 3.5 " x 12 ' 0 "
Cummins QSB( 195)
22 ' 6 "
20
2.5
455
15,390
Link-Belt
RTC-8065 Series II
65
123 ' 9 "
211 ' 7 "
45
84,891
47 ' 2 " x 10 ' 2 " x 12 ' 2 "
Cummins QSB( 270)
24 ' 0 "
23.1
2
459
16,883
Link-Belt
75RT
75
151 ' 5 "
208 ' 8 "
45
107,496
47 ' 2 " x 10 ' 2 " x 12 ' 3 "
Cummins QSB( 270)
24 ' 0 "
23.1
1.9
485
18,603
Link-Belt
100 | RT
100
237 ' 0 "
72 ' 0 "
45
–
50 ' 1.55 " x 10 ' 10.94 " x 12 ' 11.36 "
Cummins QSB Stage V( 232 HP)
26 ' 0.02 "
15
114
393
23,632
Link-Belt
120 | RT
120
164 ' 1 "
90 ' 0 "
45
–
48 ' 2.73 " x 10 ' 10.94 " x 12 ' 11.36 "
Cummins QSB Stage V( 232 HP)
26 ' 0.02 "
15
114
393
23,632
Link-Belt
RTC-8090 Series II
90
149 ' 7 "
238 ' 2 "
45
80,681
47 ' 5 " x 10 ' 2 " x 12 ' 6 "
Cummins QSB( 270)
24 ' 0 "
18.2
1.9
460
16,880
Link-Belt
RTC-80130 Series II
130
171 ' 0 "
278 ' 0 "
45
132,169
50 ' 7 " x 9 ' 10 " x 12 ' 5 "
Cummins QSL( 345)
26 ' 0 "
17
1.5
431
21,022
Link-Belt
RTC-80160 Series II
150
204 " 0 "
311 " 0 "
45
143,200
51 ' 5 " x 9 ' 10 " x 12 ' 7 "
Cummins QSL( 345)
26 ' 0 "
15
1.5
435
22,497
Manitex Industrial M150 15 62 ' 6 " 85 ' 6 " – 41,800 30 ' 1 " x 8 ' 5 " x 11 ' 2 " Cummins QSB 4.5( 160) 14 ' 0 " 25 4.5 242 7,500 Manitex Industrial M300 30 77 ' 0 " 97 ' 0 " – 54,000 37 ' 0 " x 8 ' 6 " x 11 ' 3 " Cummins QSB 6.9( 160) 15 ' 0 " 25 3 385 7,500
Tadano
GR-350XL
35
–
144.3 '
–
60,830
–
–
20 ' 9 "
–
–
–
13,095
Tadano
GR-550XL
55
–
164.3 '
–
74,850
–
–
22 ' 9 "
–
–
–
16,500
Tadano
GR-800XL-4
80
–
211.3 '
–
99800
–
–
24 ' 1 "
–
–
–
20000
Tadano
GR-1000XL-4
100
–
211.3 '
–
117,300
–
–
24 ' 1 "
–
–
–
20,000
Tadano
GR-1000XLL-4
100
–
224.1 '
–
123,500
–
–
24 ' 1 "
–
–
–
20,000
Tadano
GR-1200XL
120
–
256.9 '
–
123,460
–
–
24 ' 1 "
–
–
–
21,800
Tadano
GR-1300XL-4
130
–
237.9 '
–
158,100
–
–
25 ' 1 "
–
–
–
15,900
Tadano
GR-1600XL
160
–
305 '
–
200,960
–
–
29 ' 7 "
–
–
–
21,800
Terex Cranes RT 100US 90( 100 @ 8 ') 164 ' 0 " 219 ' 0 " 32 115,213 46 ' 4 " x 10 ' 4 " x 13 ' 1 " Cummins QSB6.7( 225) 26 ' 2 " 17 1 502 16,000
Zoomlion
RT35
40
101 ' 8 "
49 ' 3 "
30
70,548
39 ' 2 " x 9 ' 9 " x 11 ' 10 "
Cummins QSB 6.7( 173hp)
22 ' 4 "
24
150
492
15,432
Zoomlion
ZRT60
65
147 ' 8 "
52 ' 6 "
30
99,208
46 ' 3 " x 10 ' 10 " x 12 ' 5 "
Cummins QSB 6.7( 260hp)
24 ' 3 "
25
144
426.5
12,346
Zoomlion
ZRT850
93
154 ' 2 "
52 ' 6 "
30
114,640
47 ' 5 " x 11 ' 2 " x 12 ' 6 "
Cummins QSB 6.7( 260 hp)
24 ' 3 "
22
120
426.5
14,330
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
