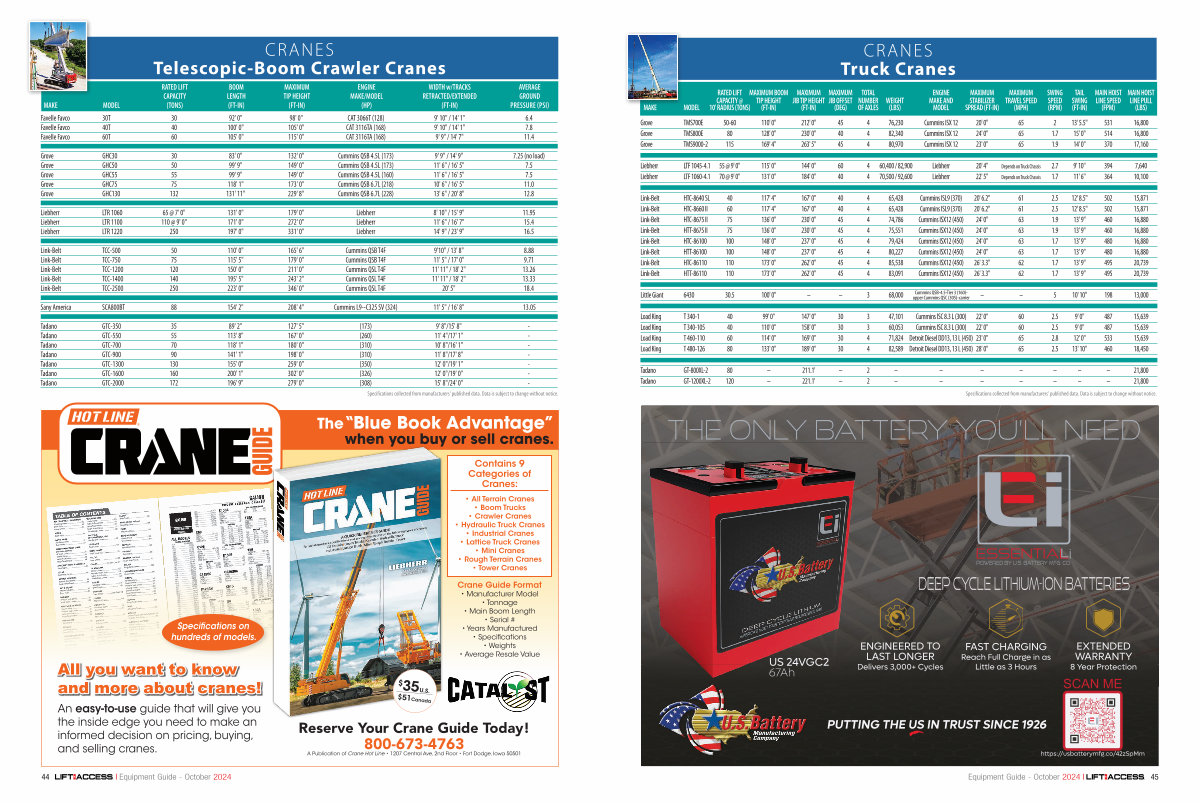

Lift and Access Equipment 2024 Equipment Guide | Page 45

CRANES Truck Cranes

CRANES Truck Cranes

RATED LIFT MAXIMUM BOOM MAXIMUM MAXIMUM TOTAL ENGINE MAXIMUM MAXIMUM SWING TAIL MAIN HOIST MAIN HOIST
CAPACITY @ TIP HEIGHT JIB TIP HEIGHT JIB OFFSET NUMBER WEIGHT MAKE AND STABILIZER TRAVEL SPEED SPEED SWING LINE SPEED LINE PULL MAKE MODEL 10 ' RADIUS( TONS)( FT-IN)( FT-IN)( DEG) OF AXLES( LBS) MODEL SPREAD( FT-IN)( MPH)( RPM)( FT-IN)( FPM)( LBS)
Grove
TMS700E
50-60
110 ' 0 "
212 ' 0 "
45
4
76,230
Cummins ISX 12
20 ' 0 "
65
2
13 ' 5.5 "
531
16,800
Grove
TMS800E
80
128 ' 0 "
230 ' 0 "
40
4
82,340
Cummins ISX 12
24 ' 0 "
65
1.7
15 ' 0 "
514
16,800
Grove
TMS9000-2
115
169 ' 4 ''
263 ' 5 ''
45
4
80,970
Cummins ISX 12
23 ' 0 "
65
1.9
14 ' 0 "
370
17,160
Liebherr
LTF 1045-4.1
55 @ 9 ' 0 "
115 ' 0 ''
144 ' 0 ''
60
4
60,400 / 82,900
Liebherr
20 ' 4 "
Depends on Truck Chassis
2.7
9 ' 10 ''
394
7,640
Liebherr
LTF 1060-4.1
70 @ 9 ' 0 "
131 ' 0 "
184 ' 0 "
40
4
70,500 / 92,600
Liebherr
22 ' 5 "
Depends on Truck Chassis
1.7
11 ' 6 ''
364
10,100
Link-Belt
HTC-8640 SL
40
117 ' 4 "
167 ' 0 "
40
4
65,428
Cummins ISL9( 370)
20 ' 6.2 "
61
2.5
12 ' 8.5 "
502
15,871
Link-Belt
HTC-8660 II
60
117 ' 4 "
167 ' 0 "
40
4
65,428
Cummins ISL9( 370)
20 ' 6.2 "
61
2.5
12 ' 8.5 "
502
15,871
Link-Belt
HTC-8675 II
75
136 ' 0 "
230 ' 0 "
45
4
74,786
Cummins ISX12( 450)
24 ' 0 "
63
1.9
13 ' 9 "
460
16,880
Link-Belt
HTT-8675 II
75
136 ' 0 "
230 ' 0 "
45
4
75,551
Cummins ISX12( 450)
24 ' 0 "
63
1.9
13 ' 9 "
460
16,880
Link-Belt
HTC-86100
100
148 ' 0 "
237 ' 0 "
45
4
79,424
Cummins ISX12( 450)
24 ' 0 "
63
1.7
13 ' 9 "
480
16,880
Link-Belt
HTT-86100
100
148 ' 0 "
237 ' 0 "
45
4
80,227
Cummins ISX12( 450)
24 ' 0 "
63
1.7
13 ' 9 "
480
16,880
Link-Belt
HTC-86110
110
173 ' 0 "
262 ' 0 "
45
4
85,538
Cummins ISX12( 450)
26 ' 3.3 "
62
1.7
13 ' 9 "
495
20,739
Link-Belt
HTT-86110
110
173 ' 0 "
262 ' 0 "
45
4
83,091
Cummins ISX12( 450)
26 ' 3.3 "
62
1.7
13 ' 9 "
495
20,739
Cummins QSB-4.5-Tier 3( 160)-
Little Giant 6430 30.5 100 ' 0 " – – 3 68,000 – – 5 10 ' 10 " 198 13,000 upper Cummins QSC( 305)-carrier
Load King
T 340-1
40
99 ' 0 "
147 ' 0 "
30
3
47,101
Cummins ISC 8.3 L( 300)
22 ' 0 "
60
2.5
9 ' 0 "
487
15,639
Load King
T 340-105
40
110 ' 0 "
158 ' 0 "
30
3
60,053
Cummins ISC 8.3 L( 300)
22 ' 0 "
60
2.5
9 ' 0 "
487
15,639
Load King
T 460-110
60
114 ' 0 "
169 ' 0 "
30
4
71,824
Detroit Diesel DD13, 13 L( 450) 23 ' 0 "
65
2.8
12 ' 0 "
533
15,639
Load King
T 480-126
80
133 ' 0 "
189 ' 0 "
30
4
82,589
Detroit Diesel DD13, 13 L( 450) 28 ' 0 "
65
2.5
13 ' 10 "
460
18,450
Tadano
GT-800XL-2
80
–
211.1 '
–
2
–
–
–
–
–
–
–
21,800
Tadano
GT-1200XL-2
120
–
221.1 '
–
2
–
–
–
–
–
–
–
21,800
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
®
