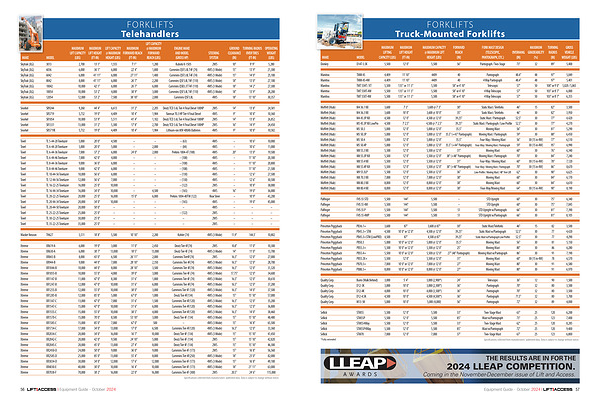

Lift and Access Equipment 2024 Equipment Guide | Page 57

FORKLIFTS Truck-Mounted Forklifts
2024 LLEAP COMPETITION.

FORKLIFTS Truck-Mounted Forklifts

MAXIMUM
MAXIMUM
MAXIMUM CAPACITY
FORWARD
FORK MAST DESIGN
MAXIMUM
TURNING
GROSS
LIFTING
LIFT HEIGHT
@ MAXIMUM LIFT
REACH
( TELESCOPIC,
OVERHANG
GRADEABILITY
RADIUS
VEHICLE
MAKE
MODEL
CAPACITY( LBS)
( FT-IN)
HEIGHT( LBS)
( IN)
PANTOGRAPH, ETC.)
( IN)
(%)
( IN)
WEIGHT( LBS)
Donkey D14T-5.5K 5,500 12 ' 0 " 5,500 56 " Pantograph / Two-Stage 73 " 32 89 " 5,400
Manitou
TMM 45
4,409
11 ' 10 "
4409
40
Pantograph
48.4 "
48
97 "
5,049
Manitou
TMM 45-4W
4,409
11 ' 10 "
4409
40
4 Way Pantograph
48.4 "
48
97 "
5,401
Manitou
TMT 55HT / XT
5,500
135 " or 11 ' 3 "
5,500
58 " or 4 ' 10 "
Telescopic
57 "
50
108 " or 9 ' 0 "
5,820 / 5,865
Manitou
TMT 55HT-4W
5,500
135 " or 11 ' 3 "
5,500
58 " or 4 ' 10 "
4 Way Telescopic
57 "
50
103 " or 8 ' 7 "
6,000
Manitou
TMT 55XT-4W
5,500
135 " or 11 ' 3 "
5,500
58 " or 4 ' 10 "
4 Way Telescopic
57 "
50
103 " or 8 ' 7 "
6,355
Moffett( Hiab)
M4 36.1 NX
3,600
7 ' 3 "
3,600 @ 7 ' 3 "
30 "
Static Mast / Teleforks
46 "
15
82 "
3,500
Moffett( Hiab)
M4 36.3 NX
3,600
10 ' 0 "
3,600 @ 10 ' 0 "
35 "
Static Mast / Teleforks
46 "
30
82 "
3,950
Moffett( Hiab)
M4 45.3P NX
4,500
12 ' 0 "
4,500 @ 12 ' 0 "
39.25 "
Static Mast / Pantograph
52.5 "
30
77 "
4,420
Moffett( Hiab)
M5 45.3P NX LowPro
4,500
7 ' 2.5 "
4,500 @ 7 ' 2.5 "
39.25 "
Static Mast / Pantograph / Low Profile
52.5 "
30
77 "
4,270
Moffett( Hiab)
M5 50.3
5,000
12 ' 0 "
5,000 @ 12 ' 0 "
35.5 "
Moving Mast
56 "
30
81 "
5,290
Moffett( Hiab)
M5 50.3P
5,000
12 ' 0 "
5,000 @ 12 ' 0 "
35.5 "(+ 43 " Pantograph)
Moving Mast / Pantograph
59 "
30
88 "
6,450
Moffett( Hiab)
M5 50.4
5,000
12 ' 0 "
5,000 @ 12 ' 0 "
35.5 "
Four-Way / Moving Mast
56 "
30( 15 in 4W)
77 "
6,510
Moffett( Hiab)
M5 50.4P
5,000
12 ' 0 "
5,000 @ 12 ' 0 "
35.5 "(+ 44 " Pantograph)
Four-Way / Moving Mast / Pantograph
59 "
30( 15 in 4W)
95 "
6,990
Moffett( Hiab)
M8 55.3 NX
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
31 "
Moving Mast
60 "
30
76 "
6,340
Moffett( Hiab)
M8 55.3P NX
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
38 "(+ 48 " Pantograph)
Moving Mast / Pantograph
70 "
30
84 "
7,240
Moffett( Hiab)
M8 55.4 NX
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
31 "
Four-Way / Moving Mast
60 "
30( 15 in 4W)
78 "
7,120
Moffett( Hiab)
M8 55.4P NX
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
38 "(+ 48 " Pantograph)
Four-Way / Moving Mast / Pantograph
70 "
30( 15 in 4W)
86 "
8,670
Moffett( Hiab)
M9 55.3LP
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
36 "
Low-Profile / Moving Mast / 48 " Free Lift
62 "
30
90 "
6,625
Moffett( Hiab)
M8 70.3 NX
7,000
12 ' 0 "
7,000 @ 12 ' 0 "
38 "
Moving Mast
60 "
30
84 "
6,170
Moffett( Hiab)
M8 80.3 NX
8,000
12 ' 0 "
8,000 @ 12 ' 0 "
38 "
Moving Mast
60 "
30
84 "
6,610
Moffett( Hiab)
M8 80.4 NX
8,000
12 ' 0 "
8,000 @ 12 ' 0 "
38 "
Four-Way / Moving Mast
64 "
30( 15 in 4W)
90 "
8,190
Palfinger
FHS 55 STD
5,500
144 "
5,500
–
STD Upright
60 "
30
75 "
6,340
Palfinger
FHS 55 4W
5,500
144 "
5,500
–
STD Upright
60 "
30
75 "
7,045
Palfinger
FHS 55 P
5,500
144 "
5,500
51
STD Upright w / Pantograph
66 "
30
81 "
7,390
Palfinger
FHS 55 4WP
5,500
144 "
5,500
51
STD Upright w / Pantograph
66 "
30
81 "
8,105
Princeton Piggyback
PB36.1 +
3,600
87 "
3,600 @ 87 "
30 "
Static Mast / Teleforks
46 "
15
82
3,500
Princeton Piggyback
PB45.3 + STM
4,500
10 ' 0 " or 12 ' 0 "
4,500 @ 12 ' 0 "
39.25 "
Static Mast w / Pantograph
52.5 "
30
77
4,420
Princeton Piggyback
PB45.3 + STM( LowPRO)
4,500
87 "
4,500 @ 87 "
39.25 "
Static Mast w / Pantograph Low Profile
52.5 "
30
77
4,290
Princeton Piggyback
PB50.3
5,000
10 ' 0 " or 12 ' 0 "
5,000 @ 12 ' 0 "
35.5 "
Moving Mast
56 "
30
81
5,150
Princeton Piggyback
PB55.3 +
5,500
10 ' 0 " or 12 ' 0 "
5,500 @ 12 ' 0 "
25 "
Moving Mast
80 "
30
86
6,280
Princeton Piggyback
PB55.4 +
5,500
10 ' 0 " or 12 ' 0 "
5,500 @ 12 ' 0 "
27 "( 48 " Pantograph)
Moving Mast w / Pantograph
86 "
30
91
7,190
Princeton Piggyback
PB55.3X +
5,500
12 ' 0 "
5,500 @ 12 ' 0 "
31 "
Moving Mast
60 "
30( 15 in 4W)
78
6,570
Princeton Piggyback
PB70.3 +
7,000
10 ' 0 " or 12 ' 0 "
7,000 @ 12 ' 0 "
27 "
Moving Mast
80 "
30
91
6,580
Princeton Piggyback
PB80.3 +
8,000
10 ' 0 " or 12 ' 0 "
8,000 @ 12 ' 0 "
27 "
Moving Mast
80 "
30
91
6,970
Quality Corp.
Burro( Walk Behind)
3,000
5 ' 4 "
3,000( 2,900 *)
24 "
Telescopic
36 "
12
90
1,500
Quality Corp.
D12-3K
3,000
10 ' 0 "
3,000( 2,300 *)
36 "
Pantograph
70 "
32
80
3,500
Quality Corp.
D12-4K
4,000
10 ' 0 "
4,000( 3,500 *)
36 "
Pantograph
70 "
32
80
3,500
Quality Corp.
D12-4.5K
4,500
10 ' 0 "
4,500( 4,500 *)
36 "
Pantograph
71.5 "
32
80
3,700
Quality Corp.
M13-5K
5,000
10 ' 0 "
5,000( 4,000)
56 "
Pantograph
72 "
32
89
4,000
Sellick
STM55
5,500
12 ' 0 "
5,500
33 "
Two-Stage Mast
63 "
25
120
6,200
Sellick
STM55P
5,500
12 ' 0 "
5,500
85 "
Mast w / Pantograph
73 "
25
123
7,400
Sellick
STM554Way
5,500
12 ' 0 "
5,500
33 "
Two-Stage Mast
62 "
25
120
8,285
Sellick
STM55P4Way
5,500
12 ' 0 "
5,500
85 "
Mast w / Pantograph
72 "
25
120
9,400
Sellick
STM70
7,000
12 ' 0 "
7,000
37 "
Two-Stage Mast
67 "
25
123
6,800
* Fully extended
Specifications collected from manufacturers ' published data. Data is subject to change without notice.
