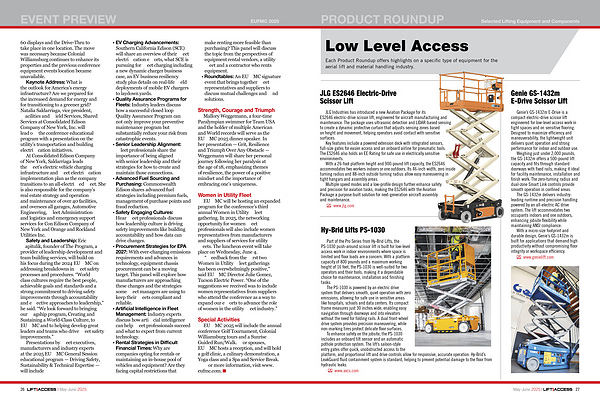

Selected Lifting Equipment and Components

Each Product Roundup offers highlights on a specific type of equipment for the aerial lift and material handling industry.

JLG ES2646 Electric-Drive Scissor Lift

JLG Industries has introduced a new Aviation Package for its ES2646 electric-drive scissor lift, engineered for aircraft manufacturing and maintenance. The package uses ultrasonic detection and LIDAR-based sensing to create a dynamic protective curtain that adjusts sensing zones based on height and movement, helping operators avoid contact with sensitive surfaces.

Key features include a powered extension deck with integrated sensors, full-size gates for easier access and an onboard airline for pneumatic tools. The ES2646 also holds an EE Rating for safe use in electrically sensitive environments.

With a 26-foot platform height and 900-pound lift capacity, the ES2646 accommodates two workers indoors or one outdoors. Its 46-inch width, zero inside turning radius and 88-inch outside turning radius allow easy maneuvering in tight hangars and assembly areas.

Multiple speed modes and a low-profile design further enhance safety and precision for aviation tasks, making the ES2646 with the Aviation Package a purpose-built solution for next-generation aircraft assembly and maintenance.

www. jlg. com

Hy-Brid Lifts PS-1030

Part of the Pro Series from Hy-Brid Lifts, the PS-1030 push-around scissor lift is built for low-level access work in indoor environments where space is limited and floor loads are a concern. With a platform capacity of 800 pounds and a maximum working height of 16 feet, the PS-1030 is well-suited for two operators and their tools, making it a dependable choice for maintenance, installation and finishing tasks.

The PS-1030 is powered by an electric drive system that delivers smooth, quiet operation with zero emissions, allowing for safe use in sensitive areas like hospitals, schools and data centers. Its compact frame measures just 30 inches wide, enabling easy navigation through doorways and into elevators without the need for folding rails. A dual front-wheel drive system provides precision maneuvering, while non-marking tires protect delicate floor surfaces.

To enhance safety on the jobsite, the PS-1030 includes an onboard tilt sensor and an automatic pothole protection system. The lift’ s saloon-style entry gates offer quick, unobstructed access to the platform, and proportional lift and drive controls allow for responsive, accurate operation. Hy-Brid’ s LeakGuard fluid containment system is standard, helping to prevent potential damage to the floor from hydraulic leaks.

www. axcs. com

Genie GS-1432m E-Drive Scissor Lift

Genie’ s GS-1432m E-Drive is a compact electric-drive scissor lift engineered for low-level access work in tight spaces and on sensitive flooring. Designed to maximize efficiency and maneuverability, the lightweight unit delivers quiet operation and strong performance for indoor and outdoor use.

Weighing just under 2,000 pounds, the GS-1432m offers a 500-pound lift capacity and fits through standard doorways with fixed rails, making it ideal for facility maintenance, installation and finish work. The zero-turning radius and dual-zone Smart Link controls provide smooth operation in confined areas.

The GS-1432m delivers industryleading runtime and precision handling powered by an all-electric AC drive system. The lift accommodates two occupants indoors and one outdoors, enhancing jobsite flexibility while maintaining ANSI compliance.

With a micro-size footprint and durable design, Genie’ s GS-1432m is built for applications that demand high productivity without compromising floor integrity or workspace efficiency.

www. genielift. com
